Description

Flag: Indonesia. Port of Register: Samarinda. Class: BKI. Gross Tonnage: 621. Net Tonnage: 228. DWT: 869T. Service Speed: 7-8 knots. Total Power: 1000hp (2 x 500hp). FW Capacity: 60m3. Main Engine: Yanmar 6 HYM-WET (2 x 500hp / 368 kW). Berth: 12 beds.

Specifications

Accommodation

Shower Room: 1 room
Mess Room: 1 room

Construction

Flag: Indonesia
Gross Tonnage: 621
Net Tonnage: 228
DWT: 869T
Bottom & Hull: Double bottom & Double hull

Equipment

Anchor Windlass: Western drive 7500 W, Twin tech gearbox RR 60: 1 (3 phase)
Anchor: 2 pcs x 1020kg

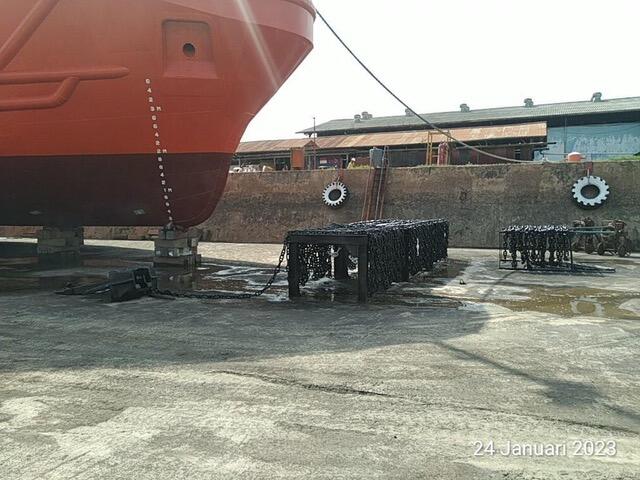

Anchor Chain: 6 shackles (P) & 7 shackles (S) diameter 26mm

Navigation Equipment

Steering Gear: Famoze Pro 5.5 hp

Engine(s)

Main Engine: Yanmar 6 HYM-WET (2 x 500hp / 368 kW)
Marine Gear Box: Reintjes WAF274L (Ratio 1:7.044)
Turbocharge Type: RHC 7
Governor Type: Zexel

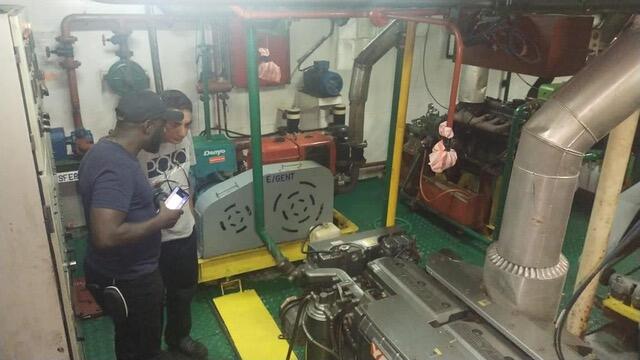

Auxiliary Engine: Deutz WP4CD66E200 2 x 50kW / 62.5 KVA
Alternator: Stamford

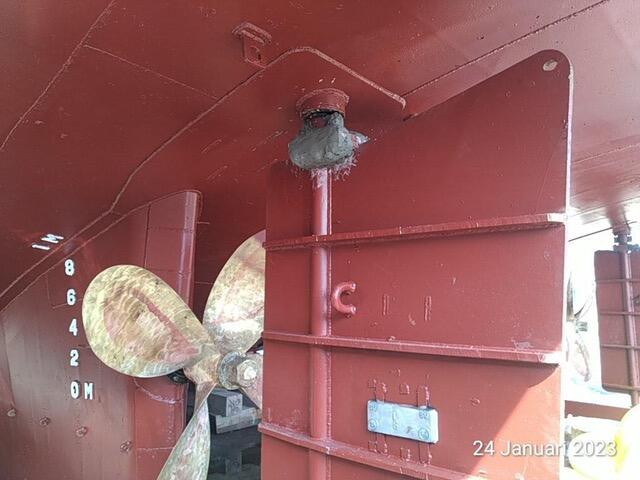

Propeller: Twin Screw (FPP)
Service Speed: 7-8 knots
Total Power: 1000hp (2 x 500hp)
FOT: 40kl
COT: 750kl

Electronics

Search Light: 1 x 1000W
SSB: ICOM IC-M 710
VHF
Navtex: Furuno NX 300
GPS: Furuno GP-32
RADAR 5”: Furuno RDP 1715
AIS: Samyung 50N
Echo Sounder: Furuno FCV-627
Magnetic Compass: DAIKO Jepang 6’’ T150R

Safety Equipment

Lift Raft: 2 Unit (@15 person)
Sea FiFi Monitor: 2 monitors
Fixed CO2: 2 cylinder (@45 kg)

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
