Description

Year of Completion: 2023. Hull: Aluminum. Superstructure: Aluminum. Crew: 12 persons. Passenger: 80 persons. Overnight Passenger: 22 persons. Speed: 18 knots. Max Speed: 22 knots. Lloyd Register (LR). Structure Notation: +100A1, SSC, Workboat, G3, Dive Support Vessel. Main Engine: 2x Cummins KTA50-M2 / 1875hp @ 1950 rpm.

Specifications

Accommodation

Crew: 12 persons
Passenger: 80 persons
Overnight Passenger: 22 persons

Construction

Hull: Aluminum
Superstructure: Aluminum
Length Overall (LOA): 46.32m
Breadth Moulded: 7.8m
Depth Moulded: 3.80m
Draft: 1.70m

Diesel Fuel: 35,500 Litres
Freshwater: 20,000 Litres
Gray Water: 200 Litres
Black Water: 1000 Litres

Equipment

Bow Thruster: 1x SAC 900 / 900kgf

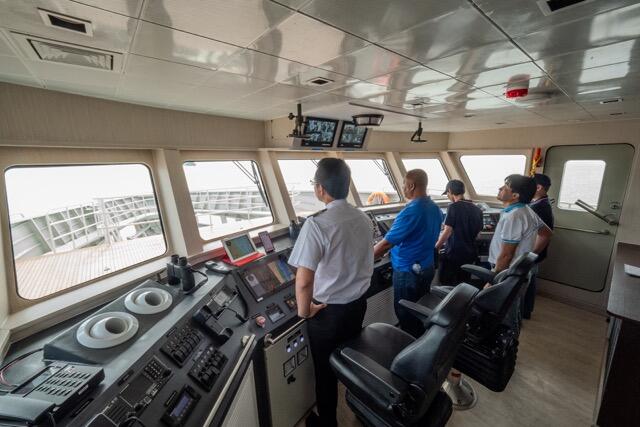

Navigation Equipment

1x Furuno Open Array Radar
1x Satellite Compass
1x Weather Fax
1x AIS Receiver
2x Fixed VHF Radio
2x Portable VHF Radio
1x Anemometer
3x multi-function display (15”)
1x Autopilot
1x HF SSB GMDSS Radio
1x Navtex
1x Echo Sounder
1x Fixed Satellite Phone
1x Cellular Broadband Ship wide System
1x Global Positioning System Compass
1x Terrestrial TV Antenna

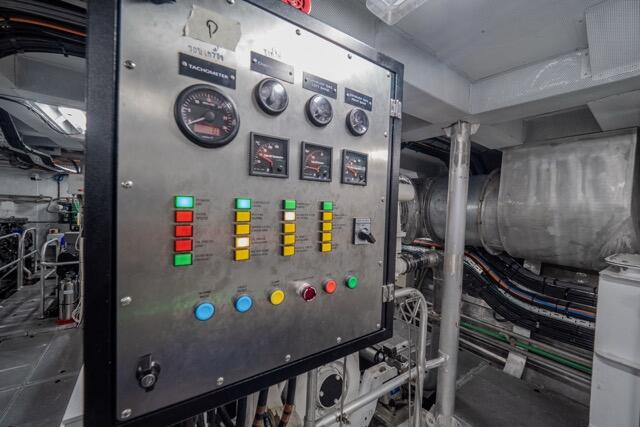

Engine(s)

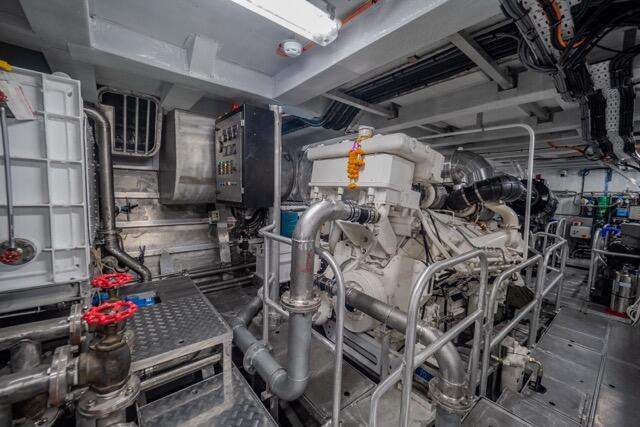

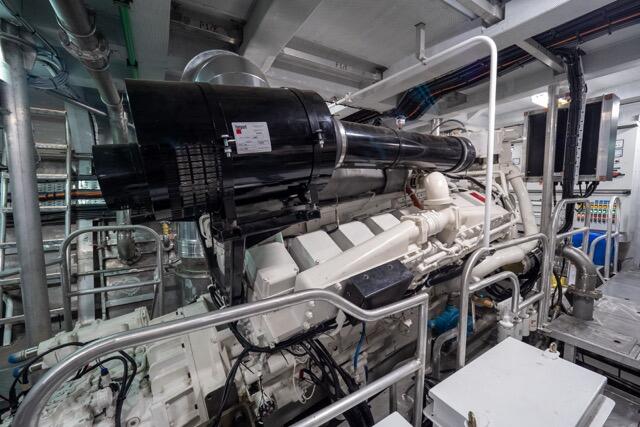

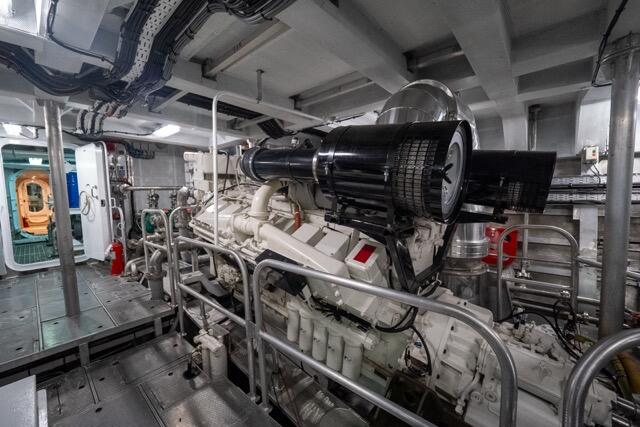

2x Cummins KTA50-M2 / 1875hp @ 1950 rpm

Electrics

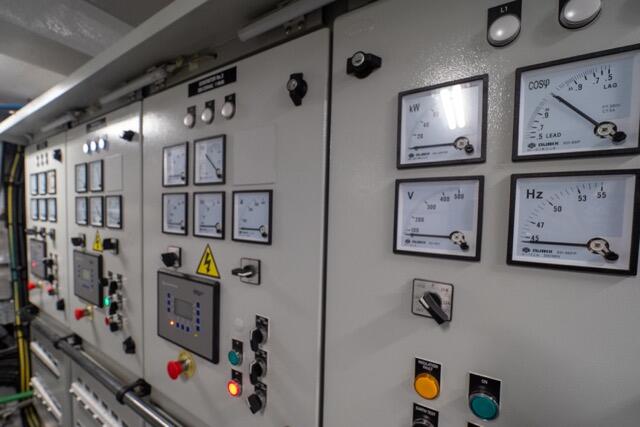

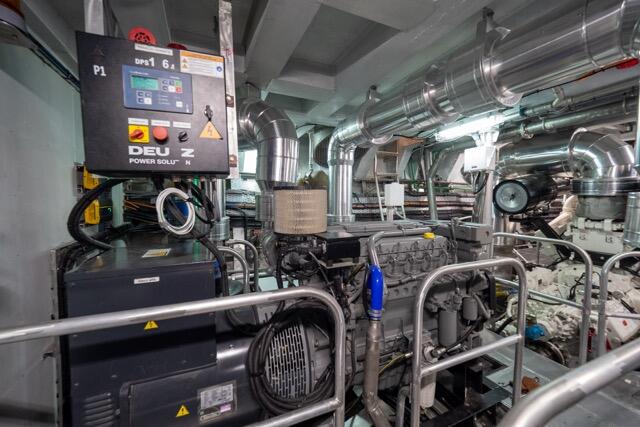

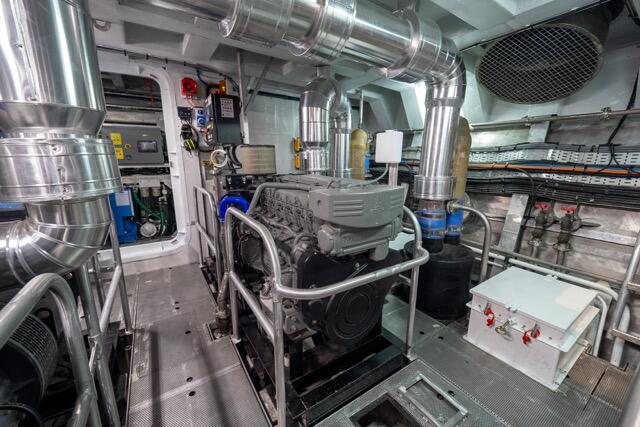

Main Generator: 3x 130kWe DEUTZ / 1500rpm / 3ph / 50hz
Harbor Generator: 1x 60kWe

Electronics

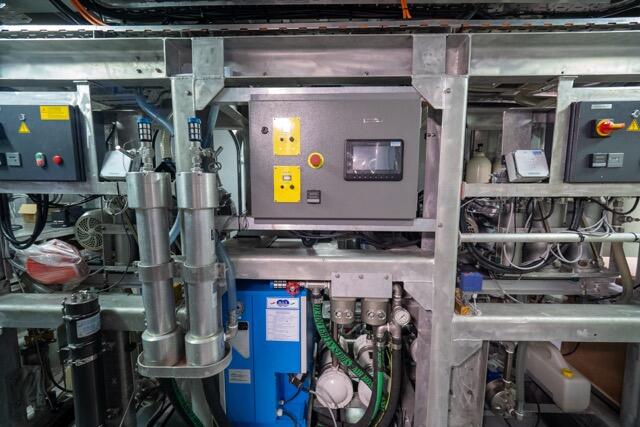

Desalination: 3x Water Maker System 240L/H

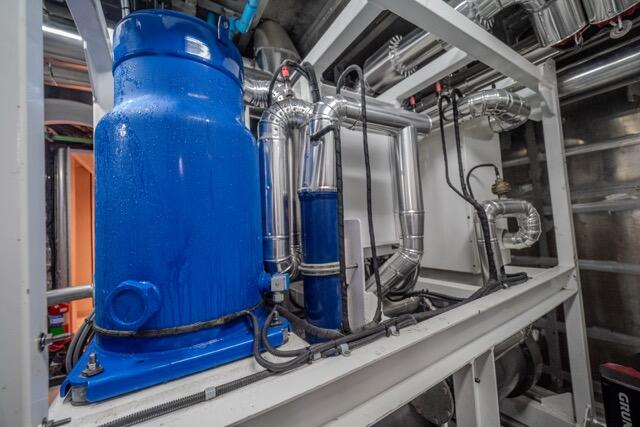

Air Conditioning: 2 sets of Marine Chilled Water System
Sewage: 1x Vacuum System (1x Operation, 1x Satndby Vacuum Pump)

Recreation Facilities (Toys)

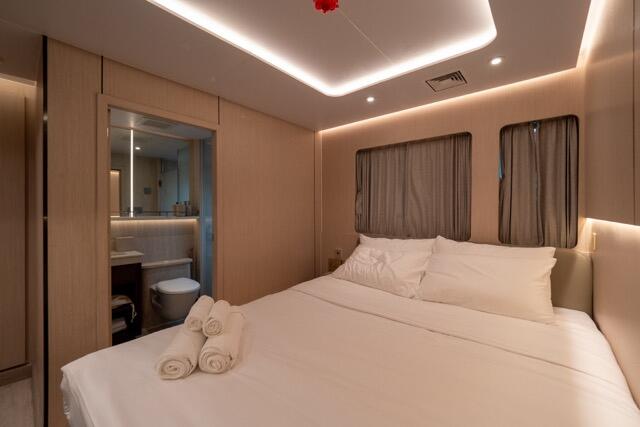

2x Forward Main Deck Guest Suite-2 people (approx. 20 sqm)

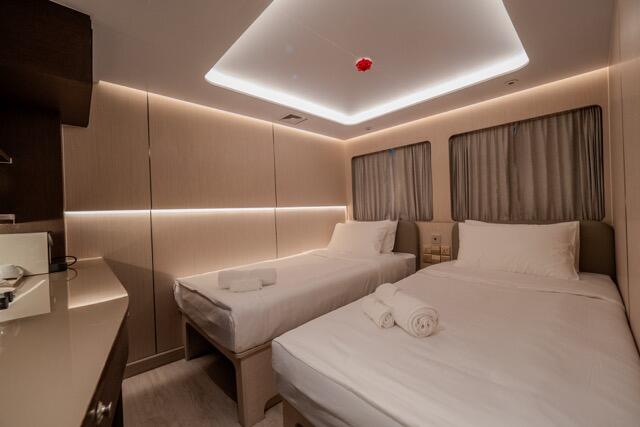

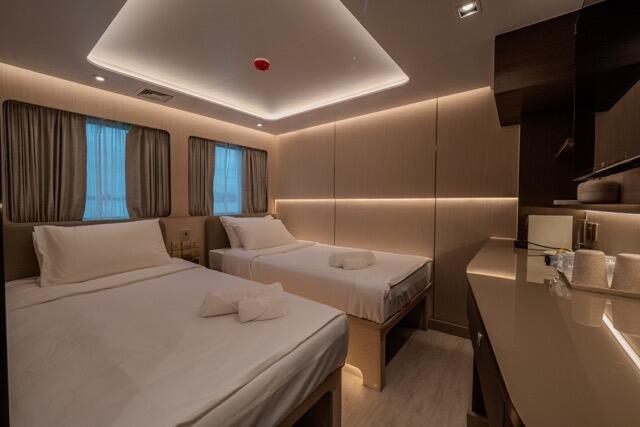

5x Main deck guest rooms - 2 people (approx. 12 sq.m)
4x Upper deck guest rooms- 2 people (approx. 15 sq m)
Independent Controlled Air-conditioning System

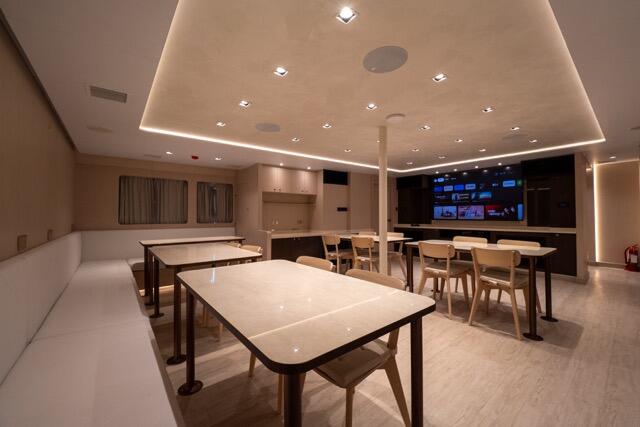

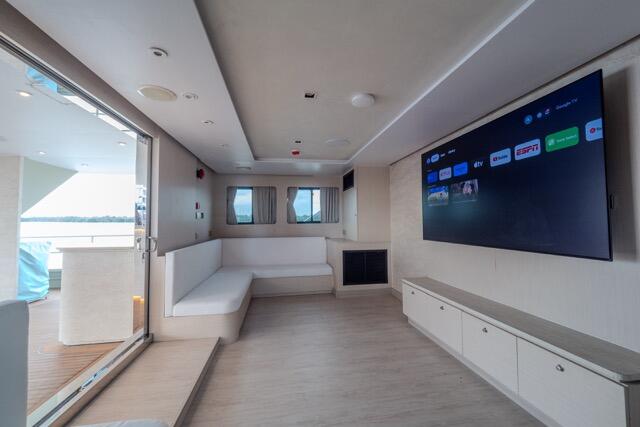

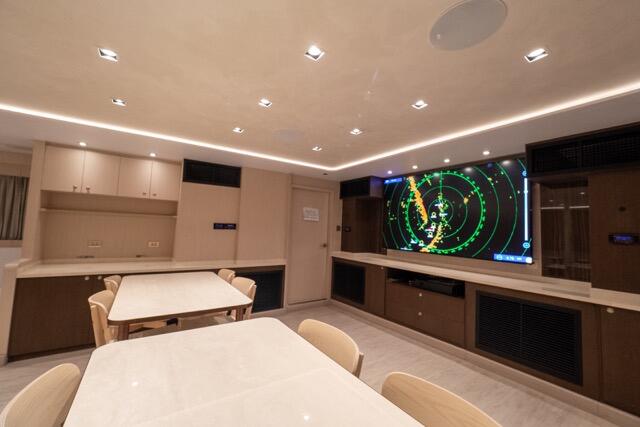

Large Modern Design Saloon
Entertainment System – TV in guest, dinning, saloon and senior crew

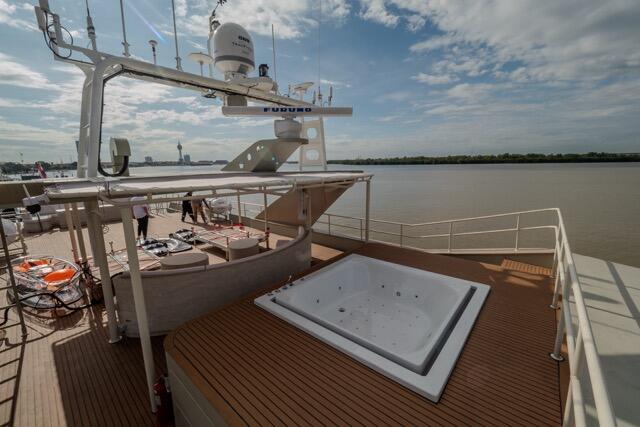

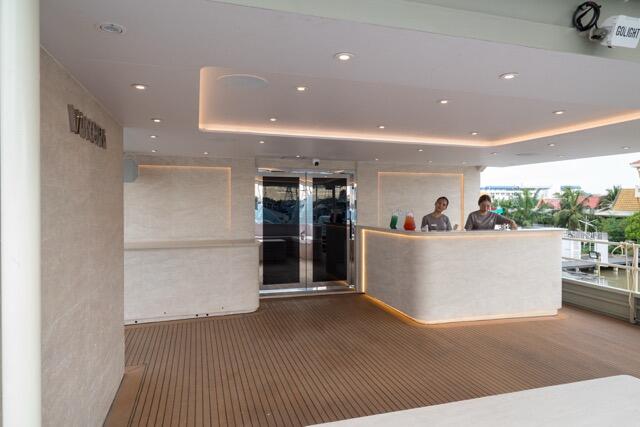

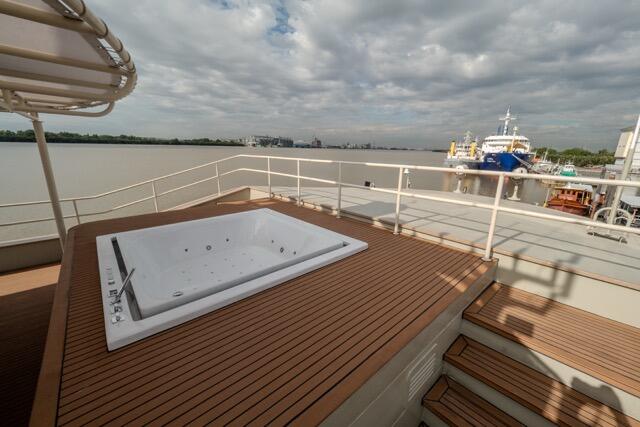

Top/Sun deck bar with Jacuzzi bath size 2.0 x 2.0 m
2x Bauer 500 l/min Compressor (High pressure)
1x 15kW Nitrox membrane system (Low pressure)

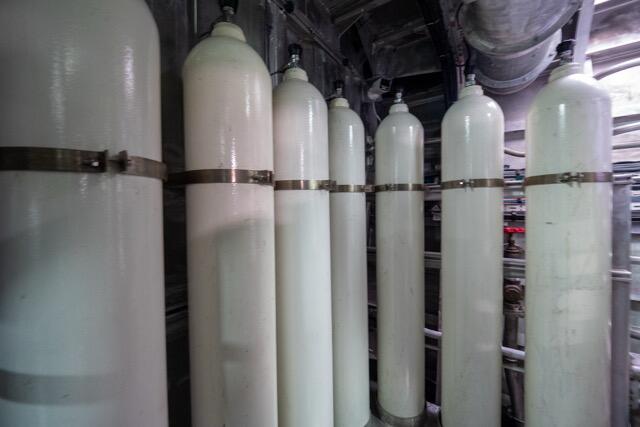

14x Air receiver tanks
30x 12L and 10x 15L Aluminium Scuba tanks
30 sets closed circuit rebreather
24 Large dive Camera rise tanks on Dive deck area
Multiple rinse area on Aft swim platform

Safety Equipment

Emergency Oxygen Kits
First Aid Kits
Life vest
2x SOLAS B Life raft 35 persons
Lifebuoys
2x 5m Dinghy boats with 60hp Outboard Engine
1x RIB with 40hp outboard engine
CCTV Cameras (Display in wheelhouse) – 16 cameras
1x EPIRB
1x Command Intercom
1x PA System Ship Wide
Fire detection System
Firefighting Equipment (Fixed & Portable)

Certification

Lloyd Register (LR)
Structure Notation: +100A1, SSC, Workboat, G3, Dive Support Vessel

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
