$45,000 | | |
Status: | Available |
Location: |
Rebak Marina Langkawi Kedah Malaysia [View Map] |

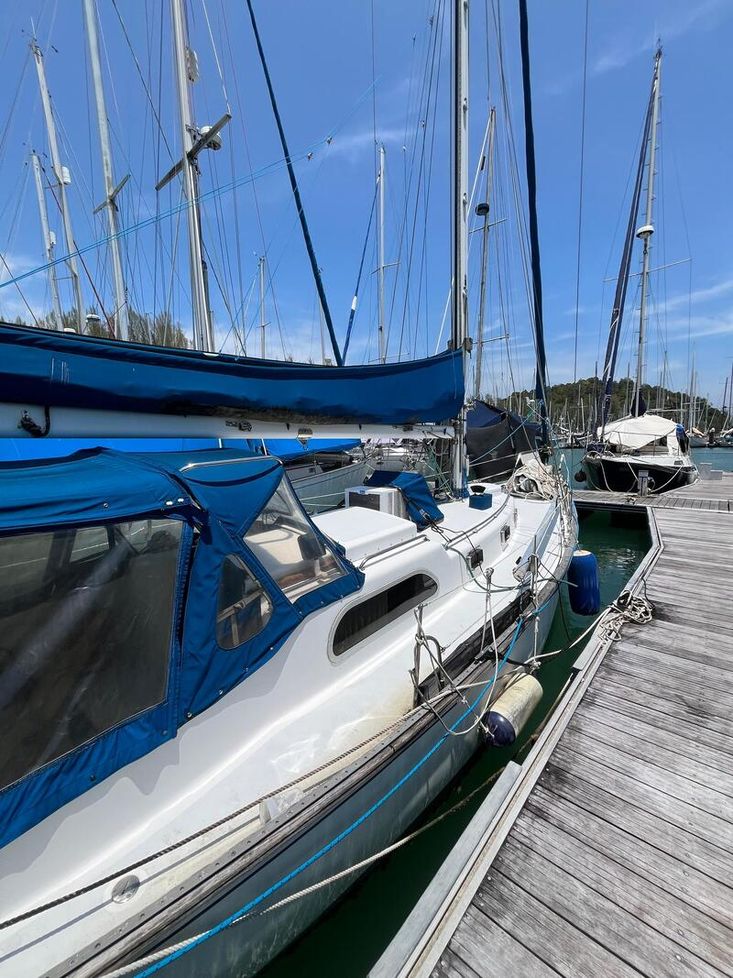

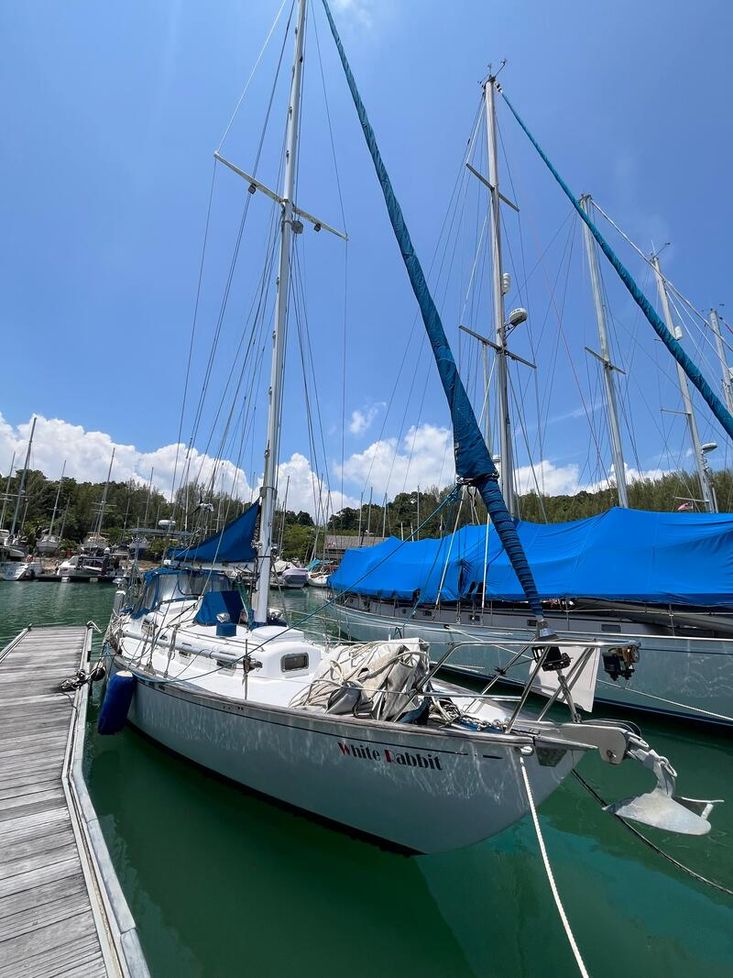

White Rabbit is berthed in Rebak Marina, Langkawi. She is actively on the market, and ready for some lucky lover of these classically designed boats, to swoop in and give her the TLC she needs. She has had a new house battery installed, to use the bilge pump, and use as the starter battery. From her updated photos, you can see she is in good condition.
She is being sold for the price of $45,000 USD as is where is. This is an ideal opportunity of a lover of these boats to obtain a very well loved and cared for boat.
She comes complete with a water maker, a central heater, Bimini and Dodger covers and sail bag ( new in 2021 and 2022), a full inventory of navigation electronics, inclusive of a radar, and solar to truly make you independent and free on your ocean adventures. Her Universal Mr-30A engine had a full rebuild in Phuket in 2019.
Having a major refit in New Mexico, in 1999, and extensive upgrades and work done in New Zealand, in 2008/2009, White Rabbit has been lovingly nurtured and maintained by her past owners. She is hull number 8 of this strong, classic blue water sailing boat, designed by the prolific famous designer, Philip Rhodes who was one of the most distinguished yacht designers of the past century. A brilliant designer whose boats were beautiful, fast, seaworthy, and comfortable.
If you are in the market for a classic designed boat with everything you need to set sail ASAP, in a trusted, well built boat, then this boat is definitely worth looking at.
Please contact me today to arrange a viewing appointment. I now have easy access to her for fresh videos and photos as needed.
Seaspray Yacht Sales is a division of Seaspray Marine Services. Qualified Shipwright Services established and operated in Langkawi for 10 years.
Summary
Vessel Name: White Rabbit
Launch Year: 1957
Length: 40' 10" - 12.45m
Beam: 10 feet 3 inches
Draft: 5 feet 9 inches
Displacement: 18 000lbs
Keel / Ballast: Keel: Full. Keel mounted rudder / Ballast: 8 000 lbs Steel GRP encased
Vessel Location: Rebak Marina, LANGKAWI, Malaysia
Region: Asia
Registration: USA #58224

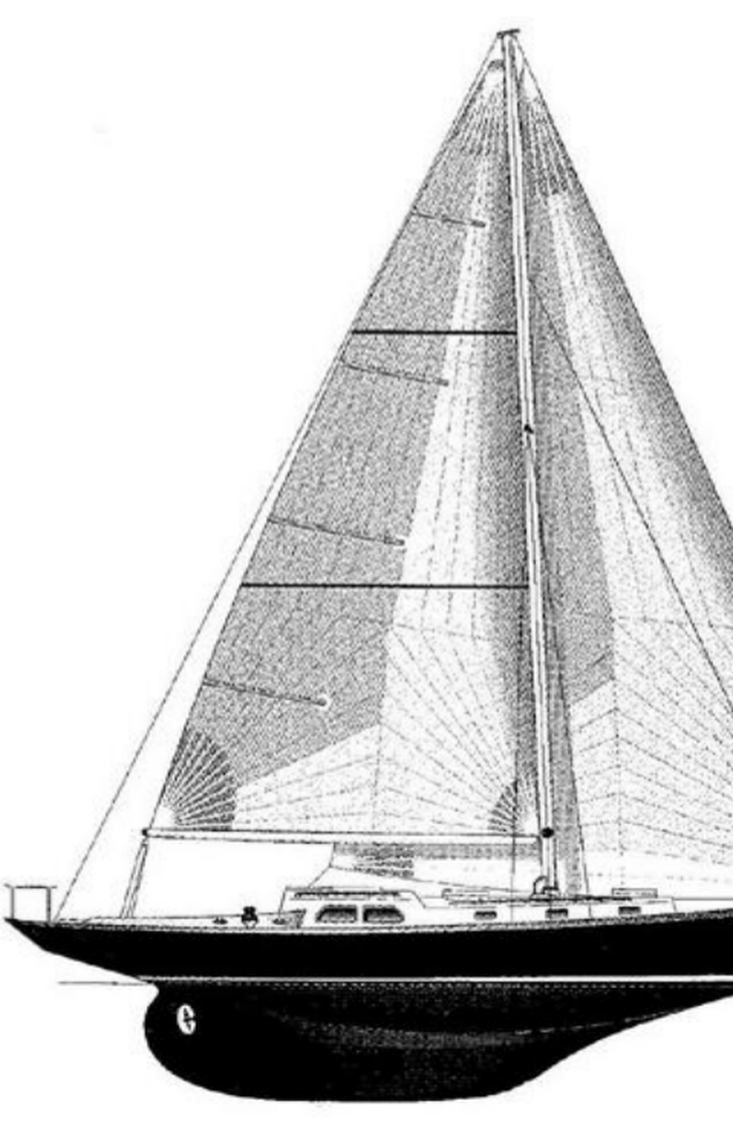

Designer: Phillip Rhodes
Builder: Coleman Plastics Company, Sausalito, CA USA
Hull Material: Fibreglass/GRP
Decks Material: Non-cored polyester grp
Engine:
Universal Mr-30A with Hurth HBW-50 transmission (2:1 ratio) rebuilt in Phuket (08/2019) 4 Cylinder Diesel
Engine Make: Universal
Number Engines: 1
Horsepower: 27HP
Fuel Type: Diesel
Engine Hours: 3600+
Cruise Speed: Speed under power 6kts
Propulsion: 14x6 3 Blade Bronze launch type propeller for shaft 1 1/8" diameter
Fuel: 35gal (aluminium)
Water: 120 gal ( 1x30 1x90 ) grp
Dinghy: Mercury Quicksilver (new 10/2010)
Outboard: Mercury 8 HP, two-cylinder, two-stroke (new 10/2010 and not completely broken in yet)

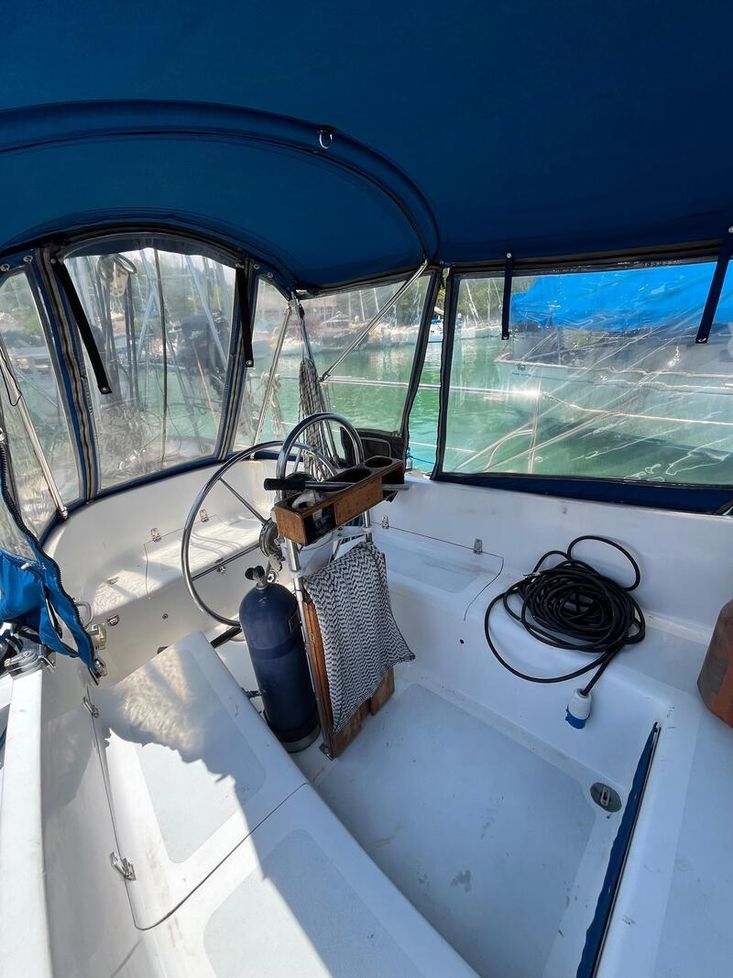

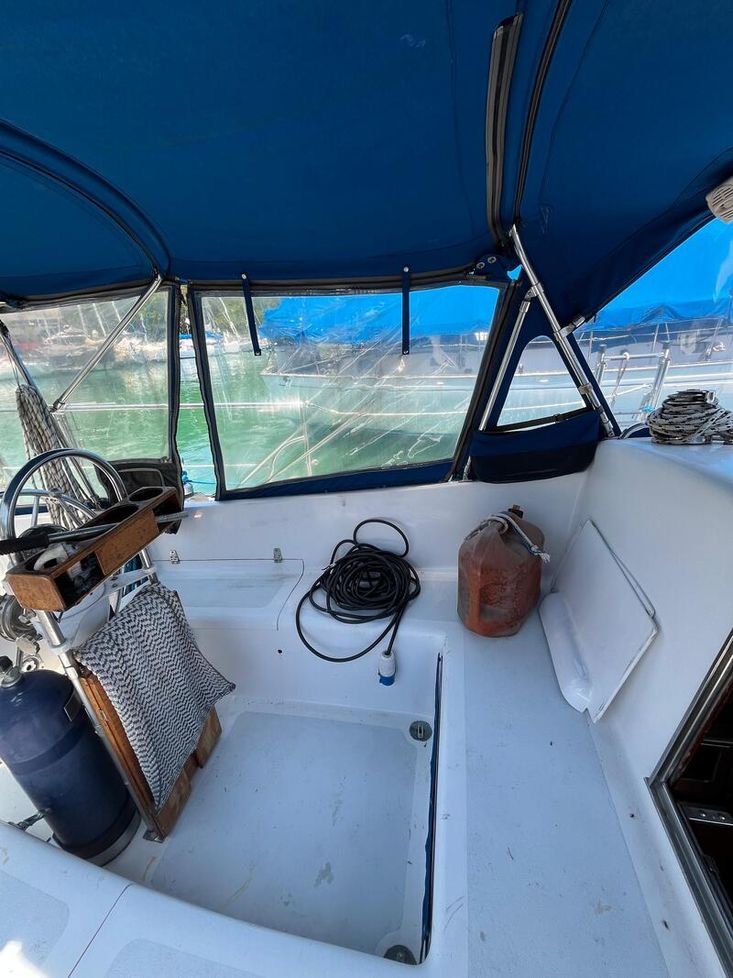

Covers:
Canvas
Dodger - Blue Sunbrella - new(06/2021)
Bimini - Blue Sunbrella - new (06/2021)
Full Enclosure - Blue Snuffler with clear panels (or interchangeable screen panels)
Sail Pack- Blue Sunbrella - new (08/2020) fits with lazy jack system either extended or retracted.
Miscellaneous deck appurtenance covers - Blue Sunbrella

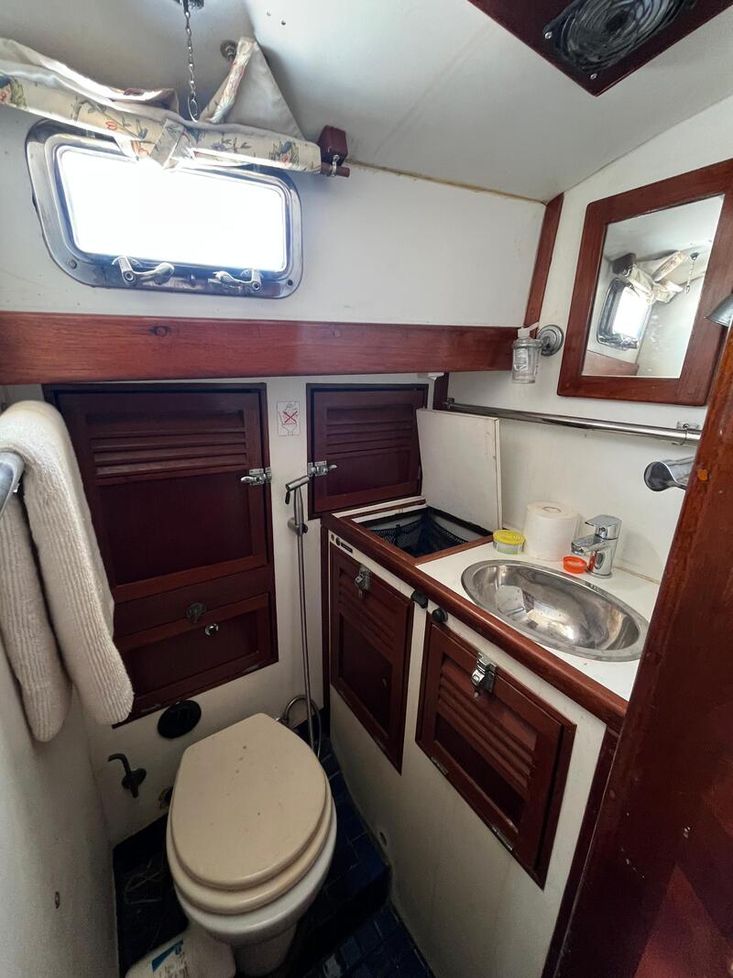

Toilet:
Raske & Van Der Meyde #RM 69 bowel fitted to Jabsco base for electric toilet. Jabsco 37010-3092. New ( 04/2019)
Entertainment: Stereo - (new 2/2014) CD, tuner, aux/iPod input w/cockpit and salon speaker
Television -Panasonic 28inch
Refrigeration: Waeco/Adler-Barbour CU-200 Supercold Machine and VD-152 large evaporator (new 3/2018)
Love's Controls model #TS-1 digital monitor and controller, mounted main electrical panel

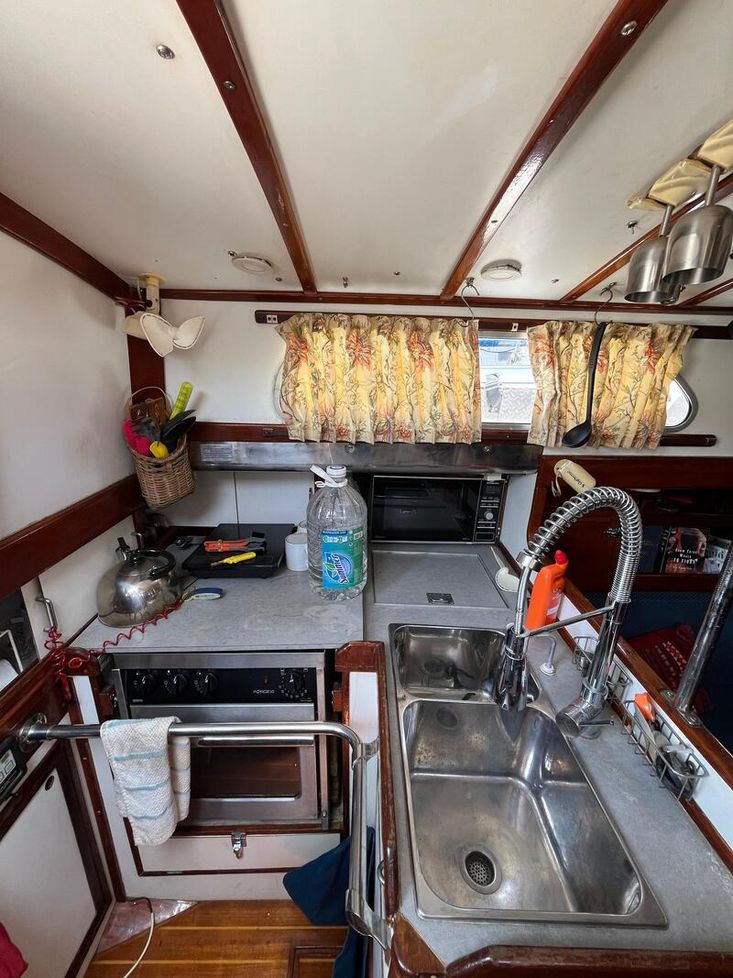

Stove: Galley Stove (Force 10 - New 4/2011) o Philips induction cooker New (03/2021)
Water-Maker: Village Marine Little Wonder Modular (160 GPD)
Hot Water: Tankless installation 110v Hot water heater. Installed on starboard aft bulkhead
Ground Tackle:
Windlass (new 11/2004), Lofrans "Tigres", 12 VDC, 1,200 watt, bi-directional motor, Chain Type - 3/8" HT gipsy with rope groove
Anchors
All anchors re-galvanized 3/2016, Penang
45 lb CQR - located primary bow roller
Secondary - 45 lb Danforth - starboard deck fittings with alternate in anchor locker
Secondary - 35 lb Delta - located in anchor locker
Anchor Rode
Primary - 200' 3/8" chain and 300' 5/8" triple braid, located anchor locker forward
Secondary - 100' 3/8" chain and 300' 5/8" triple braid, located anchor locker forward
Kellet
35 lb combination chain/rope (ANCHOR BUDDY) - located starboard cockpit locker
Safety Gear:
Fire Extinguishers
One "5-B:C" Dry Chemical (Kidde #M5G) - located forward starboard locker
One "1-A:10-B:C Dry Chemical - located galley
One "5-B:C" Dry Chemical (First Alert #FESA5) - located aft cockpit locker
BILGE PUMPS
Primary
Rule #24 360 GPH, float control, "on-off-auto" switch w/on light
Secondary
Rule #14A 3,700 GPH, float control, "on-off-auto" switch w/on light and alarm
Manual
Whale #BP4410, bulkhead mounted in aft cockpit, handle in aft cockpit locker
Man Overboard Equipment
Man Overboard Pole (Forespar #SOP) - located on backstay
Man Overboard Retrieval (Lifesling #SLRBW) - Located on aft starboard rail
Survival Bag" - located under companionway ladder
Flares, dye, mirror, water, compass, solar blankets, knife, first aid, fishing gear, etc.
5 gallon of Water on starboard rail
Bilge Pumps: 3
Life Raft: Plastimo OFFSHORE+, Four Person Offshore with survival gear
Epirb: EPIRB (ACR Global Fix) - located in galley - needs battery o 406/121MHz Class 1
Life Jackets: 4x Type II - Located in protective case in anchor locker o 3x Type V - Automatic/Manual inflatable
Flares: 7x located behind port settee (out of date)
Electrics:
Primary AC System
Capacity - 120 VAC, 30A, single phase
Connection - Weatherproof, located stbd. Aft cockpit (Marco #303SSEL-B)
5000W - 220/120 step up/down transformer
Distribution - 120 VAC, 3 circuit with main 30A breaker (Paneltronics #2313)
Circuitry - Separate port, stbd., and hot water heater
Shore Power Cabling -
50' long 30A with weather tight connections (Marco #199119)
220 v shore power cable - 50' long 30A with weather tight connections
Ship's DC Power System (30A/120 VAC)
Capacity - 200A, fused
Distribution - 12 VDC, 24 circuit with main 200A breaker (Paneltronics #3205)
House batteries - (new 5/24/2019)
Type - 4@12 VDC, 102 Amp- (Trojan AGM 31)
Configuration - one bank of four in series batteries (12 VDC system)
Capacity - 400 Amp-Hrs
Starter Battery (new 3/2020)
Type 1@12 VDC Lead Acid )
Capacity - 700 CCA
Accessories - Engine Disconnect Switch (Perko #9601DP)
Battery Combiner - Automatic 120A, 2 Battery (Blue Sea 9210 - New 4/2011)
Battery Charger/Inverter - 2000 watt Inv/100A Charger (Xantrex #81-2011-12)
Monitoring - Remote inverter/charger/DC Distribution monitoring (LINK #1000)
Ballard SG 200 battery monitor ( new 06/2019)
Solar Panels - 2 a 150 W new 02/2020)
Solar Controller - 20 Amp, Located behind saloon electrical panel

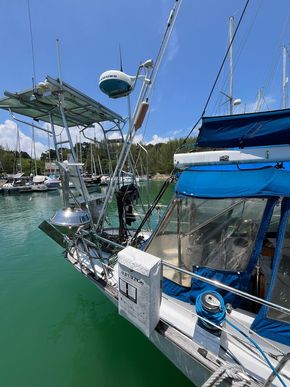

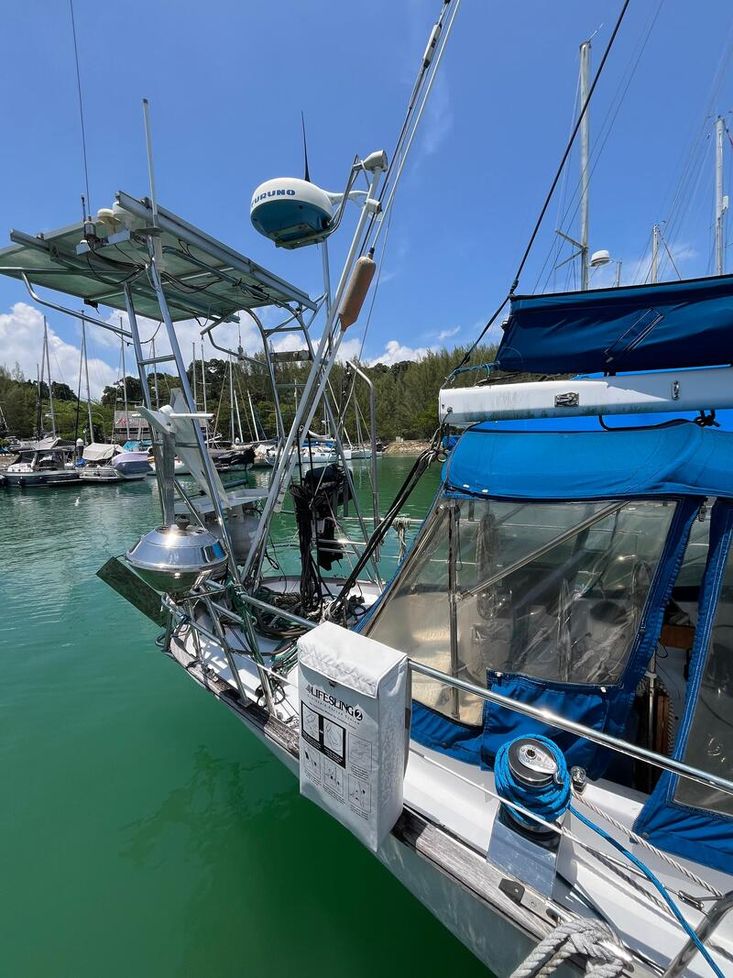

Located atop Arch
Wind Generator - 400 watt @ 28 knots (AIR-X), w/"On-Off" control switch at control panel
Portable Generator - 120 VAC, 2000 watt gasoline (Honda #2000E)
120 VAV/220 VAC 200W transformer & cables (portable) works but need replacing!

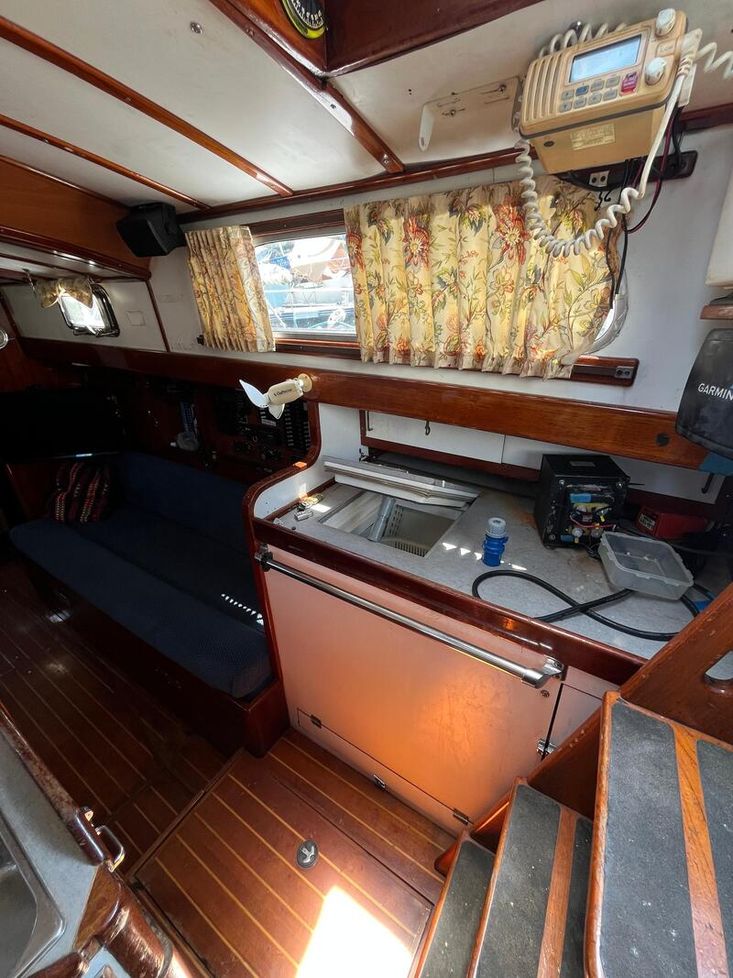

Electronics / Navigation
Primary Radar/Chart Plotter (new 3/2010)
Furuno NAVnet VX2, GD-1720C Video Plotter w/1724C
Radar
24nm Radar/Color Chartplotter reading Navionics Gold SD Charts
Garmin Map 585
Color Chartplotter reading Garmin Bluecharts, w/Sounder, Log, and Temp
(AIS) - (new 3/2009, Whangarei, NZ)
Digital Watch Mate Display & AIT250 Transponder
B& W AIS stand alone display with integrated transponder
Instrumentation - (new 12/2008)
TackTic Micronet Sail Package
Wireless systems providing wind information, depth, log, and water temperature
VHF Radio (new 1/2011)
ICOM #M422W with ICOM #HM157SW12 Remote Command MICII
SSB/HF Radio (new 3/2005)
ICOM #M802 w/AT-104 tuner and Pactor II modem
Handheld GPS - Garmin 79

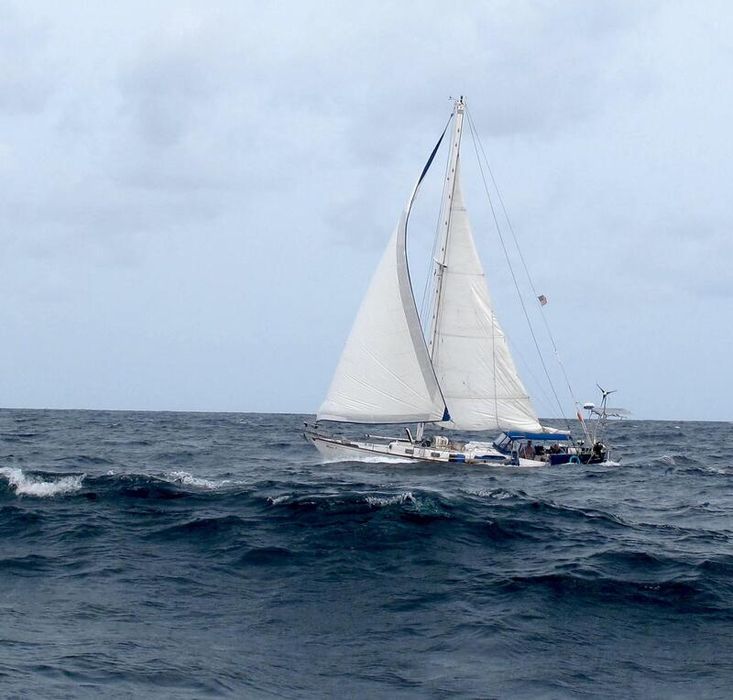

Sail Inventory:
Main Sail (New 3/2009 - Calibre Sails, Whangarei, NZ)
Dimensions - Luff = 41'4", Foot - 19'6", Leach = 46'6", Area = 410 sq. Ft.
Details - Dacron with 4 partial battens, 3 reefs, leach line controlled from mast, heavily reinforced for offshore use
Genoa
#1 Genoa (original modified 3/2005 to add UV protection and bolt rope and to fit furler)
Dimensions - Luff = 45'0", Foot = 24'6", Leach = 44'0", Area = 496 sq. Ft.
Details - Dacron, leach line
Working Jib *
Working Jib - (new in 3/2005 - Halsey Lidgard Sails, Anacortes, WA)
Dimensions - Luff = 43'6", Goot = 15'0", Leach = 37'6", Area = 290 sq. Ft.
Details - Dacron, leach line, heavily reinforced for offshore use
Gale Sail *
Dimensions - Luff = 27'0", Foot = 11'0", Leach = 22'0", Area = 117 sq. Ft.
Details - Dacron with 5/16" SS downhaul
Tri-Sail *
Tri-Sail (new 3/2005 - Halsey Lidgard Sails, Anacortes, WA)
Dimensions - Luff = 16'0", Foot = 11'6", Leach = 21'9", Area = 89 sq. Ft.
Details - Dacron
Spinnaker *
Spinnaker - (new 3/2005 - Halsey Lidgard Sails, Anacortes, WA).
Mast / Rigging
RUNNING RIGGING
Main Sail
Mainsheet (1/2") - 4:1 purchase sheave set with cam cleat - operated from aft cockpit
Traveler ( 5/16") - 3:1 purchase sheave set with cam cleat - operated from aft cockpit
Boom Vang (1/2L) - 4:1 purchase sheave set with cam cleat - operated from mast
Halyards
Port (1/2") - operated from cockpit winch w/dual lever clutches at mast & cockpit (primary)
Starboard ( 1/2") - operated from mast winch w/mast lever clutch (spare assembly)
Topping Lift (3/8") - operated from cockpit winch and lever clutch
Outhaul (3/8") - operated from port mast winch w/boom mounted lever clutch
Reefing Lines
1st Reef (7/16") - operated from cockpit winch w/dual lever clutches at boom & cockpit (primary)
2nd Reef (7/16") - operated from cockpit winch w/dual lever clutches at boom & cockpit (primary)
3rd Reef (7/16") - operated from starboard mast winch w/boom mounted lever clutch needs slot cut in sail pack to attaché to boom.
Lazy jack System
Lazy jack System - retractable to mast cleats
Jib
Sheets (1/2") - operated from primary cockpit port & starboard winches with rail mounted fairleads
Halyards
Port (12mm) - operated from port mast winch w/mast leer clutch (primary/furler)
Starboard (12mm) - operated from starboard mast winch w/mast lever clutch (spare)
Roller Furler
Roller Furler furling line (10mm) - operated from cockpit with main halyard winch w/port lever clutch
Spinnaker ( in storage at Straights Quay)
Sheets - operated from cockpit with port or starboard winches
Halyard (3/8") - external with swivel sheave on masthead fitting, cleats on mast, port side
Dousing Sock - rigging self contained, operated locally at mast
Spinnaker Pole Topping Lift (5/16) - external with sheave on mast fitting, cleats on mast
Spinnaker Pole Bridle (3/8") - portable double bridle with spring shackle
Deck Gear:
Barbeque - Magma #A10-001 with isolation valve and local control near grill Tanks
Tanks - Two Worthington 10 lb aluminum with OFP valves & spare FRP 20 lb with OFP valve
Fish cleaning table
The boat was also completely repainted in 2015/ 2016
Seaspray Yacht Sales is a division of Seaspray Marine Services. Qualified Shipwright Services established and operated in Langkawi for 14 years.
Vessel name: | WHITE RABBIT |
Condition: | good |
Vessel type: | monohull |
Designer: | Phillip Rhodes |
Builder: | Coleman Plastics Company, Sausalito, CA USA |
Model: | 40ft |
Constructed: | 1957 |
Length over all: | 40' 10" |
