Description

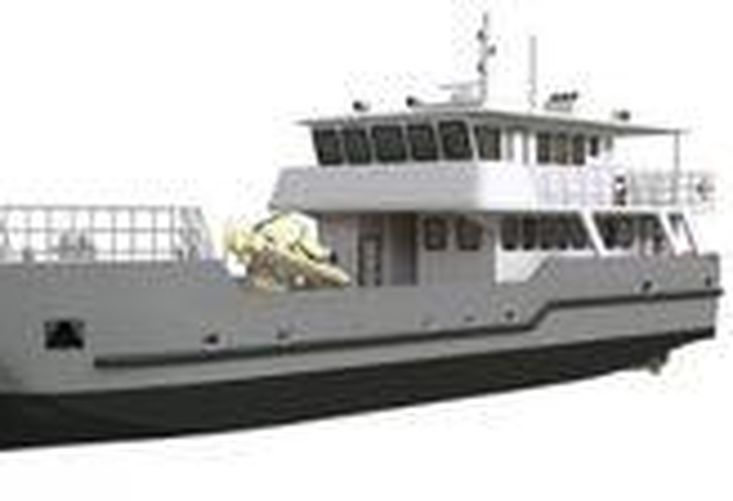

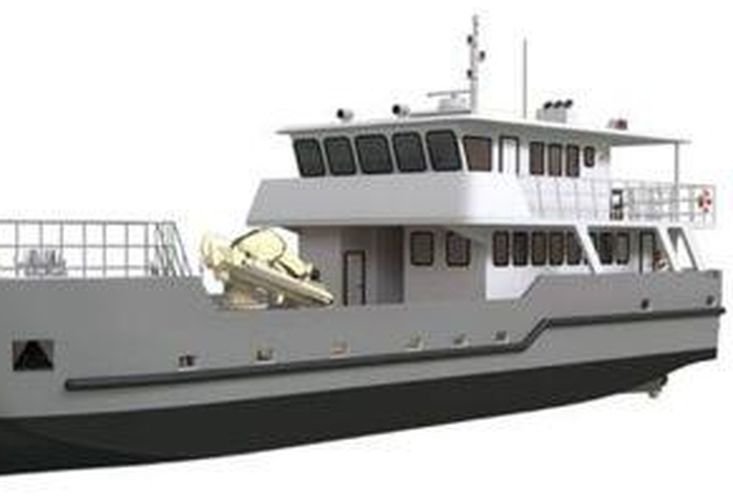

Vessel Application: Offshore and interisland shallow draft expedition yacht with cargo and passenger accommodation
Construction: Steel hull / aluminium superstructure
Classification: LR Expedition yacht coastal

Specifications

Accommodation

Airconditioned and heated habitable spaces, cabins 2 x 3 person and 2 x 2 person. Galley, mess, large store, WC’s and showers.

Construction

Steel Hull / Aluminium Superstructure

DIMENSIONS
Length Overall: 25.0 meters
Beam: 7.0 meters
Draft: 2.20 meters loaded, 1.10 lightship
Clear Deck Area: 80 meters square
Deck Load: 70 tonnes
Deadweight: 95 tonnes

TANK CAPACITIES
Fuel Oil 20,000 litres
Potable Water 4,000 litres

Equipment

DECK EQUIPMENT
Fendering Half round strake
Deck Protection Hardwood timber (optional)
Cargo Lashing Recessed SWL 2 tonne
Deck Crane Knuckle boom 1 tonne @ 15 meters (optional)
Mooring 8 x double bit bollards
Plating Hull 6mm, bottom 8mm and cargo deck 10mm
Access Gangway and gunwale door
Anchor 2 x 110 kg with 110 M chain each, 2 x winches
Loading Ramp 3.00 meter clear width, electric winches

AUXILIARY EQUIPMENT
Sewage Treatment 1,000 litres, (optional STP)
Oily Water Separator 15ppm (optional)
Fire Hydrants 3 station
Bilge System Mechanical with electric backup

Navigation Equipment

Searchlight:1 x 24V remote control
Radar System: Simrad NSS16 MDF Halo 20 48 NM
Echo Sounder: Simrad BSM 3 c/w 1 kW TXPR
Nav Plotter: Simrad NSS16
GPS: Simrad GS25
DGPS: Simrad MX610
Auto Pilot: Simrad AP70
SSB / HF Radio: Icom M85E
VHF Radio: Icom M510E
Handheld Radio: 1 x Icom M85E
Compass: Simrad Fluxgate FC40
Intercom: 2 x Icom M510E c/w wireless remote
Barometer / Clock: As directed by Flag State
Navigation Lights: SOLAS approved
Fog Horn: SOLAS approved
Deck Lights: 6 x recessed
EPIRB: Simrad 406
SART: Simrad SA70

Engine(s)

MACHINERY
Main Engines: 2 x Cummins @ 600 HP each
Propulsion: FPP aligned with keels c/w twin rudders
Generators: 2 x 40 kva 415V 50 hz (other options)
Exhaust: Dry

PERFORMANCE
Economic Speed : 8 knots @ 80% MCR
Speed Maximum : 14 knots @ 100% MCR
Range : 1000 NM with 10% reserve

Safety Equipment

Life Rafts 1 x 16 person SOLAS
Personal Flotation 16 x SOLAS

Certification

All newbuild ships and boats are built to IACS Classification and flag state rules pertaining to the country of destination.
