Description

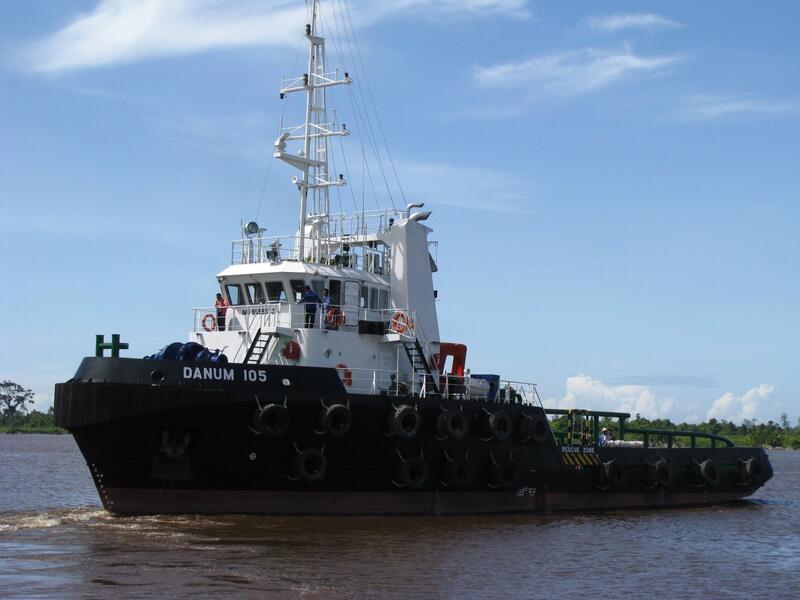

FOR 37m AHT. Builder: Shin Yang Shipyard SDN BHD. Flag: Malaysia. Port of Registry: Kuching. Class: NKK. Main Engines: 2x Cummins KTA50-M2 (2x 1800 BHP). Bollard Pull: 49.86 T. FOR 105m Steel Dumb Barge. Flag: Malaysia/. Port of Registry: Kuching. Class: DNV.

Specifications

Accommodation

14 Men
1 Man x 2
2 Men x 2
4 Men x 2

Construction

Flag: Malaysia
Depth Moulded: 4.95m
Deadweight: 350 T
Registered Tonnage: GRT 476 T / NRT 143 T
Freezer and Cooler: 0.56 m3 / 0.46 m3
Clear Deck Area: 64 m2
Deck Strength: 5T
Bollard Pull: 49.86 T

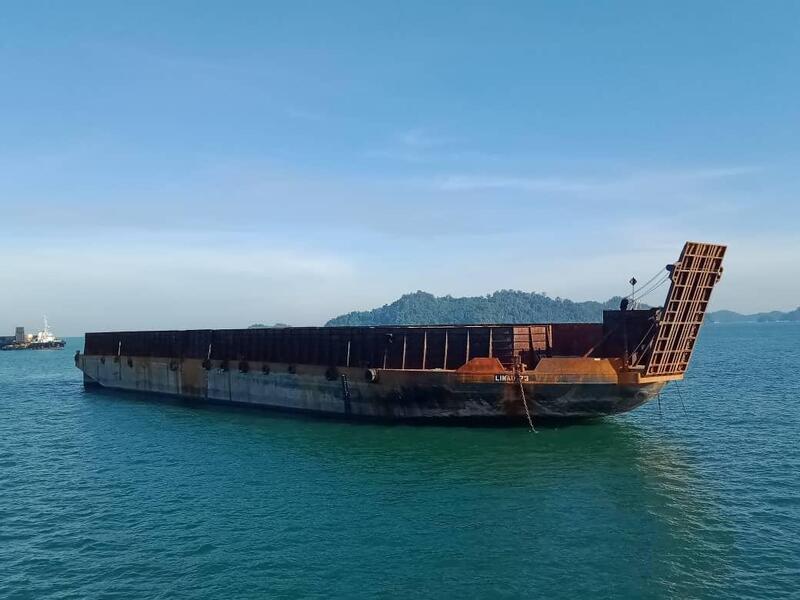

105m Steel Dumb Barge
Type: Steel Dumb Barge
Year Built: 2007
Flag: Malaysia
Port of Registry: Kuching
Class: DNV
GRT: 4328 T
NRT: 1298 T
Length Moulded: 101.011 (341.41ft)
LOA: 105.22m (345.23ft)
Breadth Moulded: 27.43m (90ft)
Depth Moulded: 6.41m (21ft)
Draft: 5.053m (16.58ft)
Lightship: 2,023 T
Deadweight: 9822 T
Deck Strength: 15 t/m2

Deck Equipment
Mooring Bollards: 2x Single Bollard, 5x Double Bollard P/S
Towing brackets: 2x Fore Smit braket, 2x Aft Smit braket
Anchor Winch: Hydraulic operated engine driven, SWL 5T
Navigation Lights: Solar
Side Wall: Yes

Transverse Bulkhead: 9
Longitudinal Bulkhead: 3
No of Compartments: 28
Deck Protection: Nil

Equipment

Towing Drum Wire: 50mm, 750m / 750m
Stern Roller: 100T
Karm Fork / Tow Pin: 100 T / 100 T Marine Equipment
Shark Jaw: 100T Marine Equipment
Towing Winch: 60T @ 5m/min (double drum) Marine Equipment
Anchor Windlass: 10T @ 12m/min Marine Equipment
Anchors: 2x Stockless Anchor 900kg
Anchor Chain: 30mm Dia x 27.5m x 8 length each side
Capstan: 5T @ 15m/min Marine Equipment
Tugger Winch: 5T @ 15m/min Marine Equipment

Navigation Equipment

Gyro Compass: Sperry MK-37
Magnetic Compass: Daiko SR-150
SART: ACR Pathfinder 3
EPIRB: GME MT403FF-S503B
Wind Indicator: Navman Wind 3150S
Barometer: Hanseatic

Engine(s)

Main Engines: 2x Cummins KTA50-M2 (2x 1800 BHP)
Propulsion: Manganese Bronze / 4 Blades Solid with key Dia 2.20m Fixed Pitch in Kort Nozzle
Bow Thrusters: 3.5T / 350 HP
Main Generator: 2x Cummins 6CTA 8.3-D(M), 2x 165kW
Oily Water Separator: Georim Engineering, GRS-10EB, 1m3/hr
Sewage Treatment Plant: Southern Chemical, MST-15, 0.9m3/day
Service Speed: 10 knots
Fuel Oil: 36m3/hr @ 60m head
Fresh Water: 50m3/hr @ 50m head

Electronics

Inmarsat C: 2x Furuno Felcom-15
GMDSS: Comply GMDSS A1+A2+A3
Radars: 1x Furuno FM-150 Mark 2, 1x Furuno 1942 Mark 2
GPS Navigator: Furuno GP-32
Autopilot: Furuno NAV pilot-500
Navtex Receiver: Furuno NX-700B
Communication: Data/Fax/Phone: FBB Skipper 150
MF/HF SSB DSC: 1x Furuno FS-1570, 1x Icom IC-M710
Echo Sounder: Furuno FE-700
VHF Radio Telephone: 2x Furuno FM-8800S
GMDSS Hand Held Radio: 2x Icom IC-GM 1600
AIS: Furuno FA-150
Satellite Compass: Furuno SC-50
Speed Log: Furuno DS-80

Safety Equipment

CO2 System: 6 x 45kg CO2
Fire Hydrants: 6 nos
Fire Extinguishers: 1x 45 litres foam, 2x 9 litres foam, 7x 9kg DP, 4x 4.5kg DP, 1x 2kg CO2
Fast Rescue Craft: Rigid Rescue Boat, 6 Person, SC45KR, 30HP Petrol Engine
Safety Equipment: 2BS set, 2x 15 per life raft
H2S: Sensitron MG-400, 4 Sensors
