Description

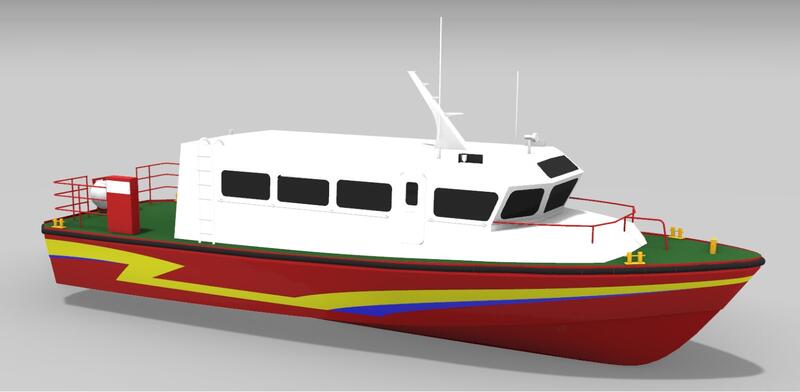

Personnel Transfer and Light Cargo Supply within Port Limits. Hull Aluminium Alloy. Superstructure Aluminium Alloy. 36 passengers + 4 crew. Flag Registry: Singapore. Main Engines: 2 x Yanmar 6CXB-GT 400bhp @ 2500 rpm. Main Deck Passenger Seats 36 units x non-reclinable.
Date Launched: 2025 Length: 15m (49ft 2in) Beam: 4.5m (14ft 9in) Draft: 0.8m (2ft 7in) Note: Main Engines: 2 x Yanmar Location: Singapore

Specifications

Accommodation

36 passengers + 4 crew
36 units x non-reclinable
Thermal Insulation On (internal) - exterior surfaces Mineral wool batts
Bunk Beds 4 nos
Toilet 1 unit

Construction

Personnel Transfer and Light Cargo Supply within Port Limits
Vessel Type: Monohull, Semi displacement
Hull Aluminium Alloy
Superstructure Aluminium Alloy
Length (hull) 15.00 metres (approx.)
Beam (overall) 4.50 metres (approx.)
Depth 2.05 metres (approx.)
Draft 0.80 metres (approx.)
Fuel Oil 2,000 litres (approx.)
Freshwater 56 litres (approx.)
Sewage Holding 40 litres (approx.)
Speed: 28 knots @ 100% MCR with 1.5 ton dwt
(Clean Hull, Calm Water Condition)

Anchor Size & Quantity: 1 unit High Holding Power x According to BV EN calculation
Chain Length & Material: Nylon rope, according to BV EN calculation
Fendering: Aluminium Pipe Fenders around deck line

1 x Single Bitt at Fore peak
2 x Double Bitt at Fore Deck
2 x Double Bitt at Aft Deck

Air Cooled Split Unit Total: 15kW Cooling Capacity

Wheelhouse, Passenger Area & Crew Accommodation
Floor coverings Rubber studded mats
Wall & Ceiling Linings Aluminium Composite Panels

Floor coverings Painted with anti-slip
Wall & Ceiling Linings Open web painted

Painting System Hempel or Equivalent
Colour Scheme To be approved by Owner

Surface preparation: mechanical etch
1 coat Primer
1 coat Tie-coat
1 coat Anti-fouling

Surface preparation: mechanical etch
1 coat Primer
1 coat Tie-coat
1 coat Finishing

Surface preparation: mechanical etch
1 coat Primer
1 coat Tie-coat
1 coat Finishing

Surface preparation: mechanical etch
1 coat Primer
1 coat Tie-coat
1 coat Finishing with anti-slip

Fuel System Fuel Tanks 2,000 litre total capacity
Fuel Oil Quick Closing Remote pull wire type at main deck
Bilge System: Submersible Bilge Pump in all compartments, manual hand pump for forepeak tank

Directly piped overboard where applicable
Others piped to sewage holding tank.

Piped to sewage holding tank with bypass to overboard
Fitted with international shore connection
Macerator pump for pumping overboard or via shore connection

FW Tank 56 litre capacity
Freshwater Pump 1 no. 12.8 litres/min

Navigation Equipment

Steering System Manual-hydraulic

5 x lights (mast, anchor, port, stbd, stern)
2 x NUC lights

AIS/GPS/Plotter/Sounder 1 x Onwa 7" KCombo-7A or equivalent
Magnetic Compass 1 x Ritchie
CVS 1 x fitted
Search light 1 x 100W
Horn 1 x fitted

VHF: 1 x Icom M220
PA w/ mic & speaker: 1 x fitted

Engine(s)

Main Engines: 2 x Yanmar 6CXB-GT 400bhp @ 2500 rpm
Gear box: 2 x ZF 305-3A
Generator: 1 x Kohler 9kWe, 230V Single Phase 50Hz
Control Station: 1 x Control Station, All engine remote control panels at wheelhouse
Propulsion: 2 x Fixed Pitch Propeller

Engine Room
Air in trunk Fan forced
Air out trunk Natural

Seawater shall be supplied to the following services:
Main Engines
Generator Engine
Internal Fire Fighting System

Electrics

AC Voltage and Frequency 230V/50Hz
DC Voltage 12V/24V

Engine Starting As per Engine Maker's recommendation
Emergency Min 6 hours

1 x 24V 30 amp automatic charger

230V Main Switch Board x 1 unit
24V Distribution board x 1 unit

Safety Equipment

Fire/GS Pump 1 no. 200 liters/min Electrical driven
Emergency Fire/Bilge Pump 1 no. 170 liters/min Portable Submersible

1 x Fire/GS Pump (refer item 6.5)
1 x Emergency Fire/Bilge Pump (refer item 6.5)
1 x Fire Hydrant
1 x Fire Hose Box with Hose and Nozzle
1 x Sand Box with Scoop
2 x Fire Buckets with Lanyards
1 x 9L Foam Portable Fire Extinguisher
2 x 4.5kg Dry Powder Portable Fire Extinguisher

42 x SOLAS Approved Adult Life Jackets
4 x Life Buoy
6 x Hand Flares
1 x First Aid Kit
1 x 16 men Inflatable Liferaft

Certification

Flag Registry: Singapore
Merchant Shipping (Special Limits Passenger Ships) Safety Regulations
Classification Society: Bureau Veritas
Project: 15m Passenger Boat (Hull No. H020 & Hull No. H027)
Specification: H020-H027-D-01 Rev: 3
Date: 10 Jan 2025
Reference Drawing: General Arrangement Drawing as attached

Sacrificial Zinc Anodes for 12 months protection.

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
