Description

G/T: 408ton; Net: 223ton; Crew: 27p. MAIN ENGINE: Niigata 6M28BFT. FPP. SPEED: Service: 11.7kt, Max: 13.385kt. Freezing Room: 106.68m3, Work Room: 48.07m3B.

Specifications

Construction

PRINCIPAL PARTICULARS

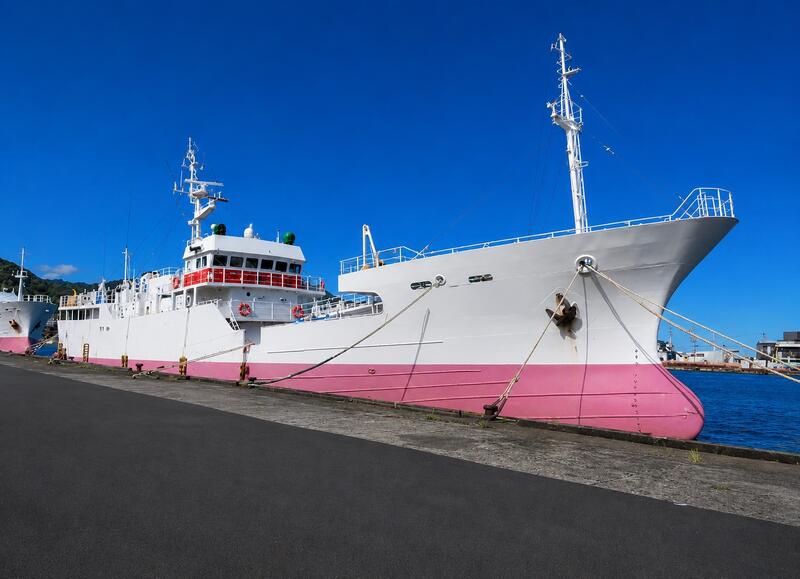

TYPE: Long Liner Delivery
Length LOA: 56.04m
REG: 49.30m
PP: 49.20m
Breadth: 8.80m
Depth: 3.84m
Designed Draft: 3.45m

BUILDING
Year(Launch): 1996-May
Built by: Miho
VOLUME
FOT: 339.5KL
LOT: 10.58KL
FWT: 27.78KL
FH: 524.01m3

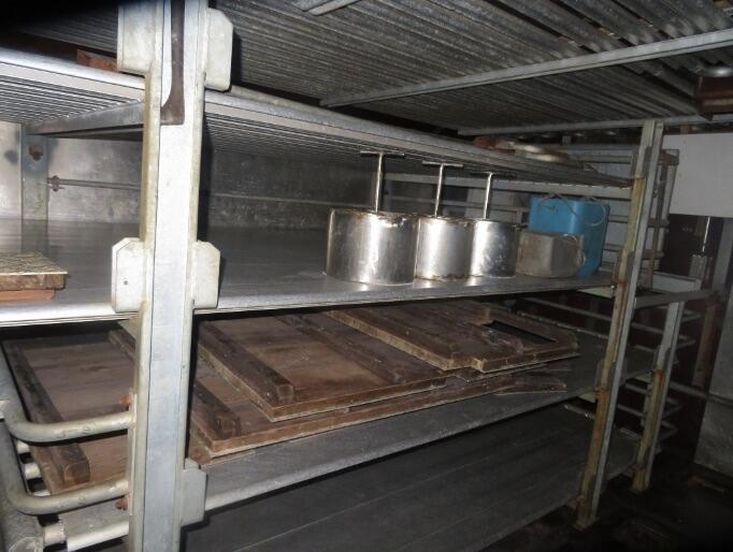

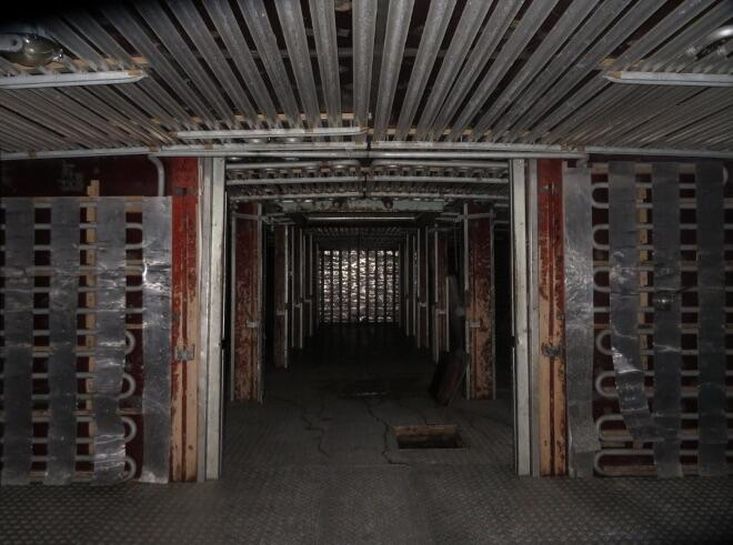

Freezing Room: 106.68m3
Work Room: 48.07m3B

Engine(s)

TONNAGE
G/T: 408ton
ITC: 618ton
Net: 223ton

Crew: 27p

MAINE ENGINE
Maker: Niigata
TYPE: 6M28BFT
Cyl# x Bore x STROKE: 6x280mmx500mm
PS x rpm: 1000ps x 350rpm

PROPELLER
Maker: Nakasima
Material: AlBC3
Type: FPP
Spec.: D x P 2900mm x 2508mm
Pitch Changing:Fixed

SPEED
Service: 11.7kt
Max: 13.385kt

AUXILIARY ENGINE
Maker: Yanmar
Type: S165L – UN
Cyl# x Bore x Stroke: 6 x 165 x 210
PS x rpm: 480ps x 1200rpm
Set: 2sets

GENERATOR
Maker: Shinko
Type: TVL1 –GJ –605
KVA: 400KVA
Voltage: 225V
Hz: 60Hz
Set: 2sets

FREEZER COMPRESSOR
Maker: Hasegawa (Nisshin)
Type: VZL62RM R22
Performance: 75KW
Set: 3sets

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
