Description

Max Speed: 11.00 knots. Economical Speed: 9.00 knots. Fresh Water Consumption: 4 ton / day. Fuel Type:MDO. Fuel Consumption at Economical Speed: 250 liters / day. Clear Deck Space Area: 468 mtr.sqr. No of crew berths: 13 person. Main Engines: 2 x Mitsubishi S6A3 MPTK (490 KW @1960 pm).

Specifications

Accommodation

ACCOMMODATION DETAILS
No of crew berths: 13 person

Construction

VESSEL BUILT SPECS / PRINCIPLES DIMENSIONS
Length of Deck: 61.77m
LBP: 55.00m
Beam Moulded: 12.00m
Depth Moulded: 3.30m
Draft (Summer): 3.00m
Light Ship: TBA
DWT: 1200 tones
GRT: 674
NRT: 203

Keel Plate: 12mm
Bottom Plate: 10mm
Side Plate: 10mm
Deck Plate: 8mm

VESSEL CARGO PARTICULARS

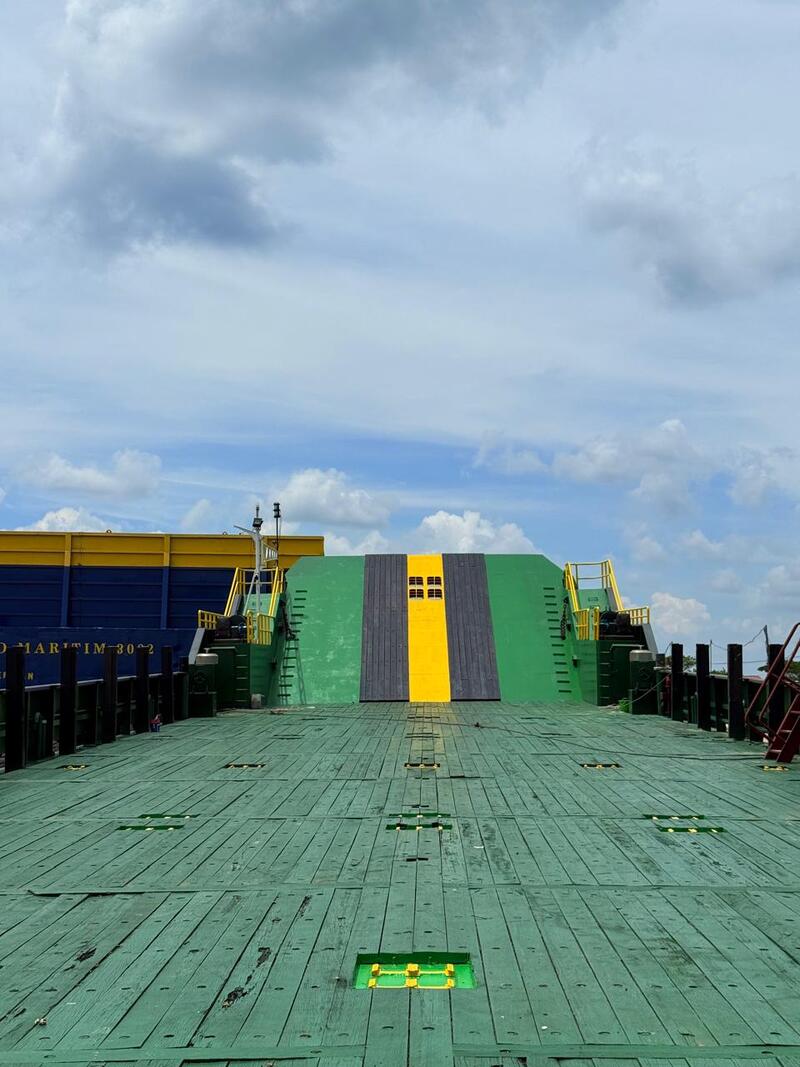

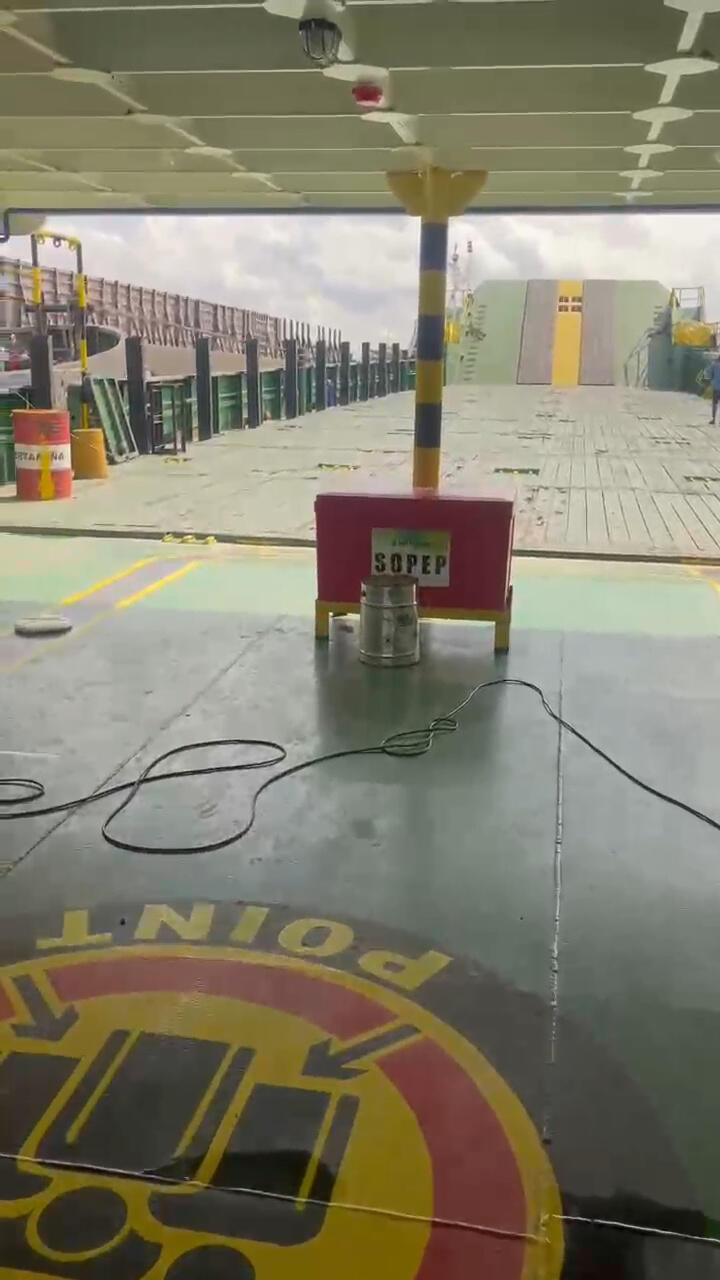

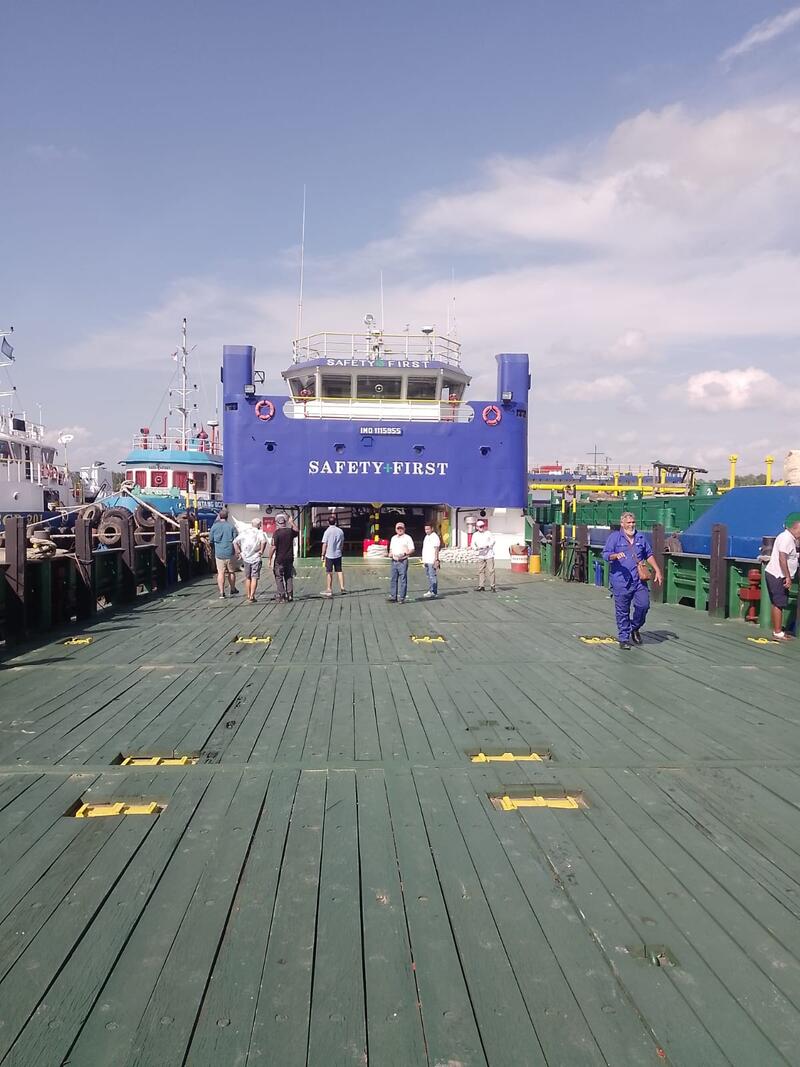

Clear Deck Space Area: 468 mtr.sqr
Cargo Tank Details
Total Cargo Weight The Vessel: TBA
Can Carry/DWCC
Cargo Doors/Ramp Doors: L=8.00m
Details: B= 9.50m
Deck Strength: 5.57 ton /msqr
Maximum Height of Cargo Allowed: TBA
No. Of Refer Sockets: 10 units
Clear Deck Dimensions L* B in M: L 39.00m, B 1140m

Equipment

LSA AND FRA EQUIPMENT
Navigation & Search Light: 1 x 100 watt
Fire Fighting as per SOLAS: Available
Inflatable Life Raft: 2 x 16 men
Rescue Boat: Type – WJ45KR/L-4.50m

SPECIAL FEATURE DETAILS
FiFi Pump Details: Ebara Pump 80x65 FS JA
Air Conditioning: 2x Compressor 15 HP 380-440V
Chiller For Meat And Vegetable: 2x Compressor 5 hp.3 PH loW Temp.
Total ballast capacity of the ship in cubic meters:70.45m
Spray Boom Details: 2 unit
Throw Distance Deepest Ballast Drafts (Normal & Heavy Weather: 25m
Identification (rank) of the appointed ballast water management officer: Chief Officer

Navigation Equipment

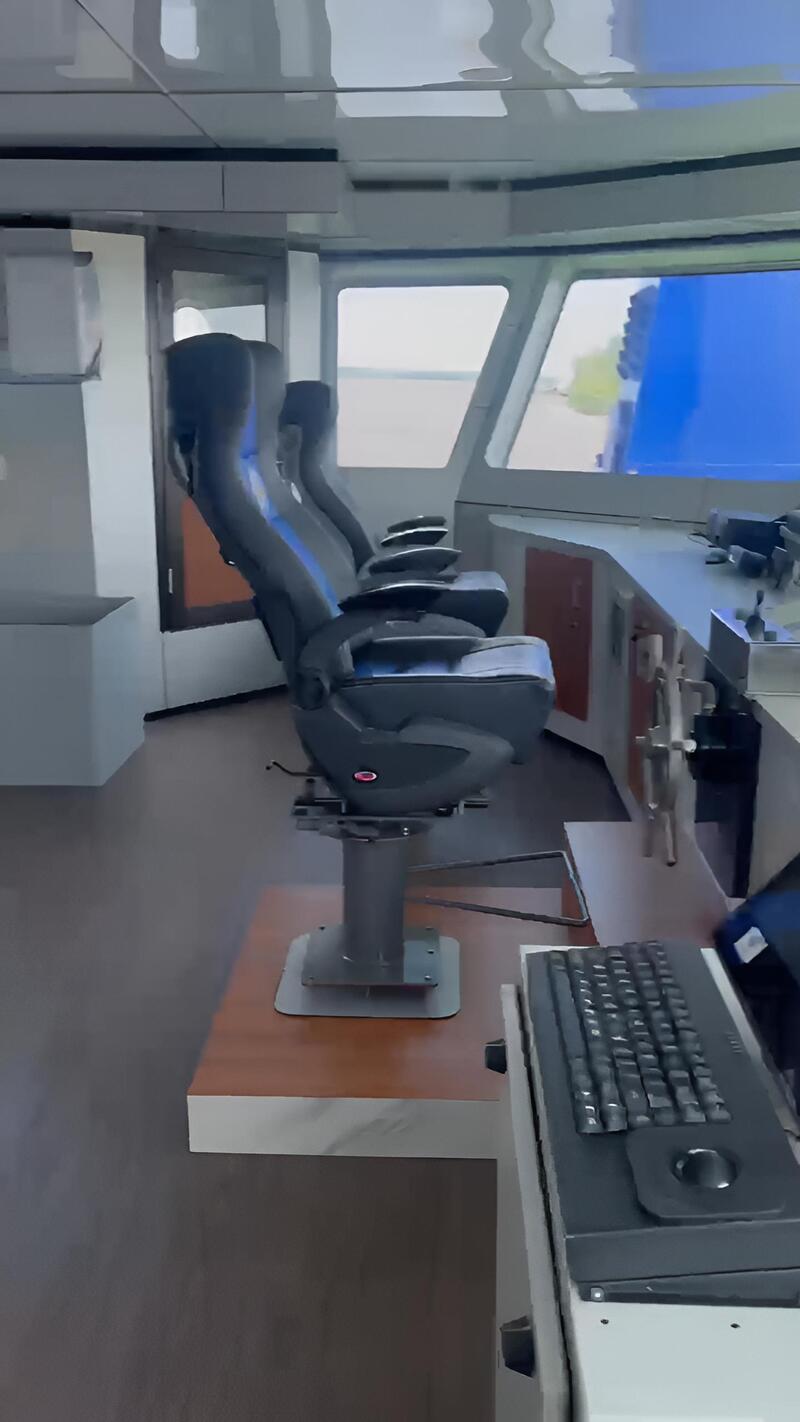

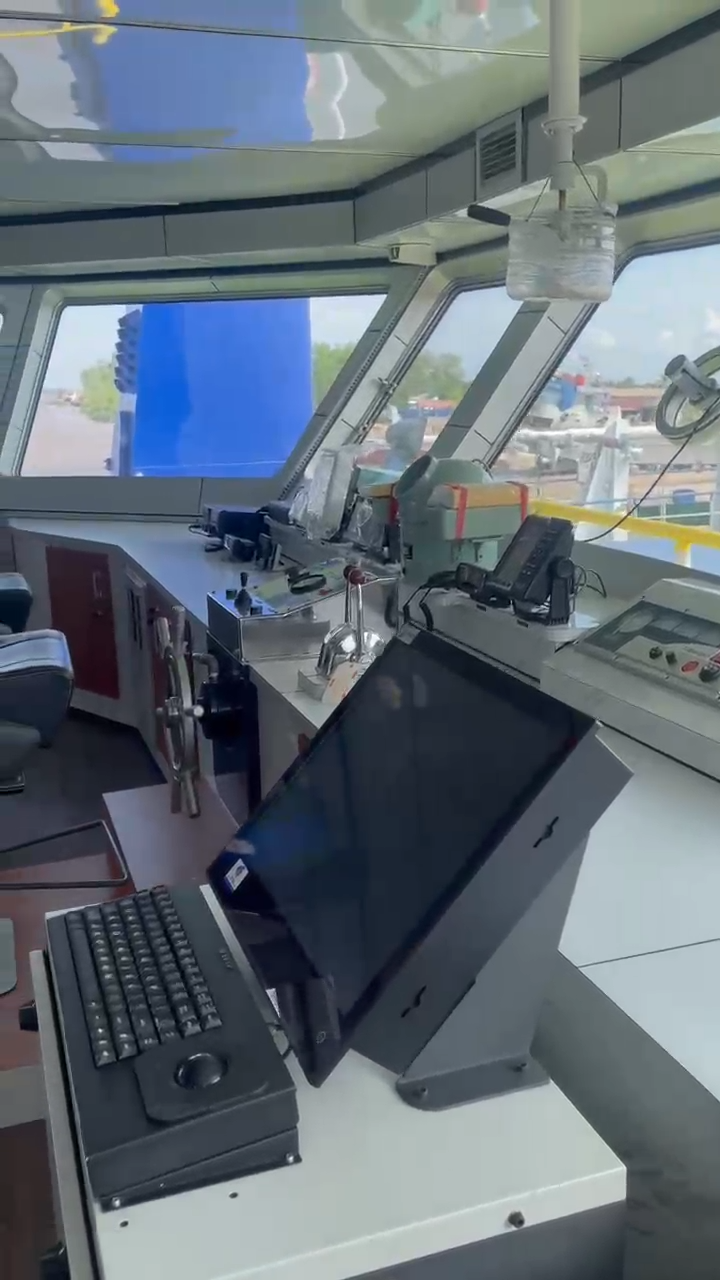

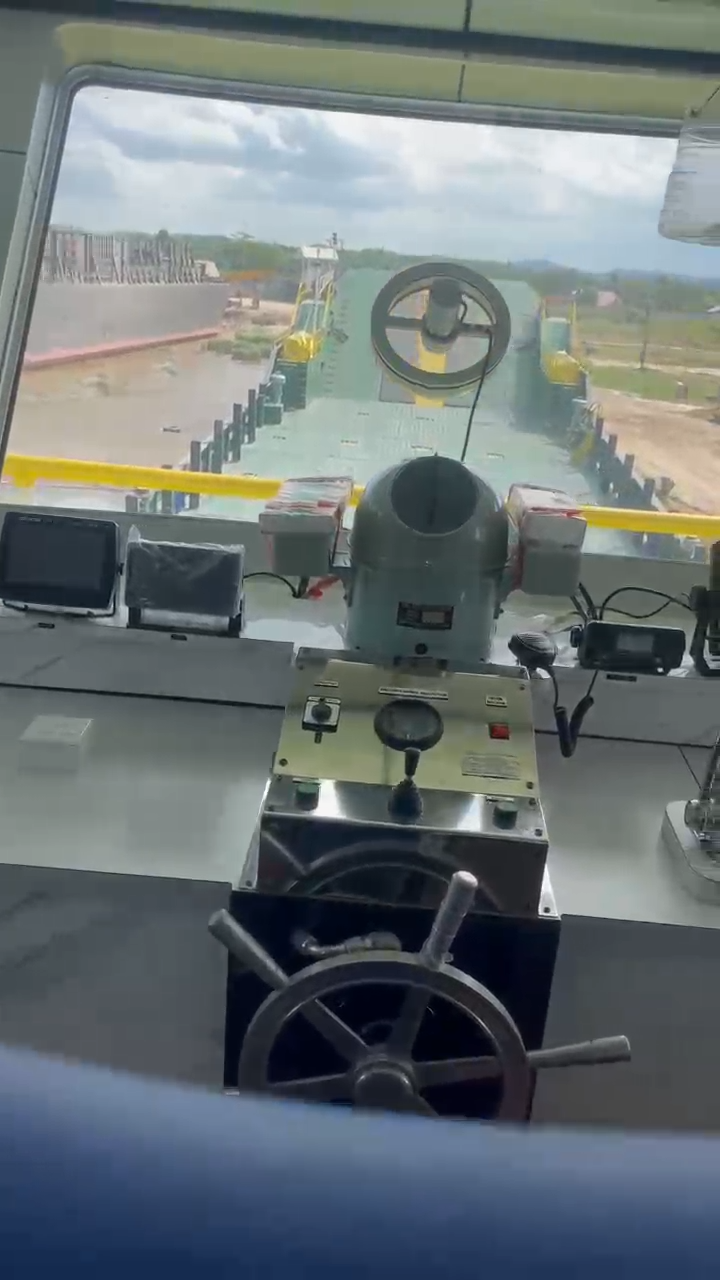

COMMUNICATION AND NAVIGATION EQUIPMENT
MF / HF / VHF: IC - M220
SSB: Furuno FS 2575 C
Radar: Furuno Radar MU190
GPS: Furuno GP-170
Echo Sounder:Garmin 350 FF
INMARSAT: 447090310
Navtex: Furuno NX-300
Magnetic Compass: Daiko Keiki
AIS: Samyung Ais-son
Auto Pilot: TBA
ECDIS: Transas

Engine(s)

VESSEL PERFORMANCES PARTICULARS
Max Speed: 11.00 knots
Economical Speed: 9.00 knots
Fresh Water Consumption: 4 ton / day
Fuel Type:MDO
Fuel Consumption at Economical Speed: 250 liters / day

VESSEL CAPACITIES
Fuel Tanks: 371.337m3
Fresh Water Tanks: 256.526m3

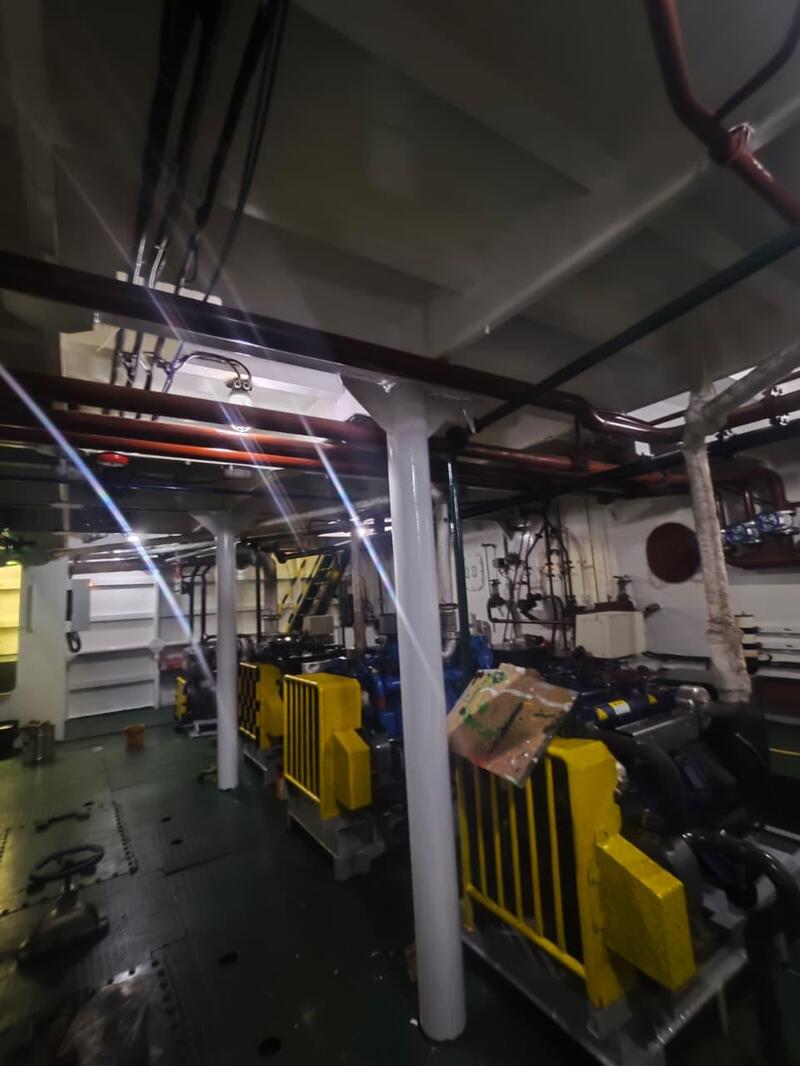

PROPULSION AND MACHINERY DETAILS
Main Engines: 2 x Mitsubishi S6A3 MPTK (490 KW @1960 pm)
Gear Box: Advance Gearbox D300A 5.9: 1
Bow Thruster: BTX 2500CC plus abt 3.12 tons
Generator Bow Thruster: 1 x Cummins 350 KW for Bow Thruster
Sewage Tank: 1.00m3
Generator: 2x Weichai 100 KW @1500 rpm, 1x Weichai 60kw @ 1500 rpm
Propulsion: Fixed Pitch
Emergency Generator: 1x Weichai 50 kw @ 1500 rpm
Sewage Treatment System: HNBA-15

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
