Description

New build 68m Landing Craft to Bureau Veritas class (? Hull ? Mach, Deck Ship). Available prompt ex-shipyard Southern China, subject only to completion of sea trials. Cargo capacity up to 120 TEU or 54 FEU + 12 TEU, suitable for regional and project cargo operations.

Specifications

Accommodation

Total complement: 19 persons

Construction

New build 68m Landing Craft to Bureau Veritas class (? Hull ? Mach, Deck Ship). Available prompt ex-shipyard Southern China, subject only to completion of sea trials. Cargo capacity up to 120 TEU or 54 FEU + 12 TEU, suitable for regional and project cargo operations.

Vessel Overview

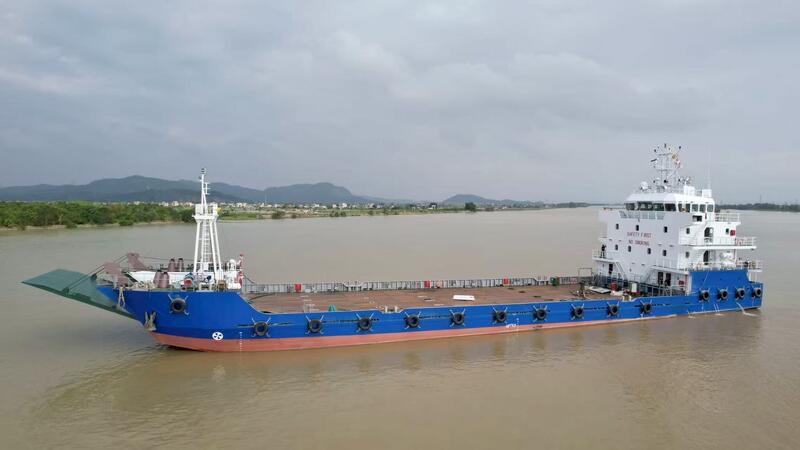

68 m Landing Craft
Class: BV ? Hull ? Mach, Deck Ship
Navigation: Unrestricted

Principal Dimensions
Length OA: 68.00 m (69.45 m with appendage)
Length BP: 63.70 m
Breadth Moulded: 16.00 m
Depth Moulded: 4.50 m (approx.)
Design Draft: 3.45 m (approx.)

Cargo & Deck
Free Deck Area: ~750 m²
Deck Strength:
8 t/m² (Frame 16–28)
15 t/m² (Frame 28–fore)
Ramp Strength: 15 t/m²
Ramp Door Size: 10 m × 8 m
Container Capacity:
120 TEU, or
54 FEU + 12 TEU

Equipment

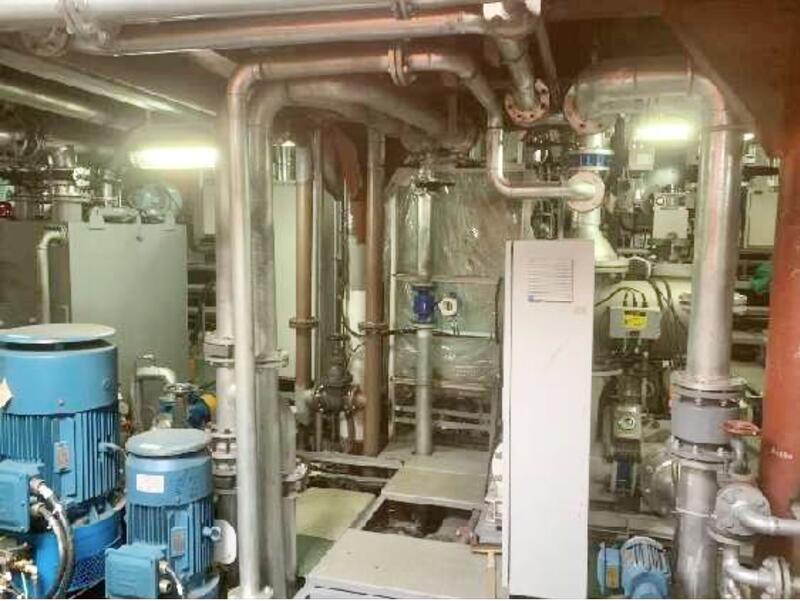

Pumps & Systems
Bilge & Ballast Pump
Fire / General Service Pump
Emergency Fire Pump
Fuel Transfer & Long-Range Fuel Pumps
Fresh Water Cargo Pump

Deck Equipment
Anchors: 2 × 1920 kg (bow), 1 × 1920 kg (stern)
Anchor Windlass: 2 × 8 t @ 15 m/min

Navigation Equipment

GMDSS Area A3
Radar, GPS, Gyro Compass, Echo Sounder
AIS, BNWAS, Navtex
Inmarsat-C, Iridium Satellite Telephone
VHF, MF/HF radios, EPIRB, SART

Engine(s)

Performance
Free Running Speed: ~10 knots
Endurance: ~125 days

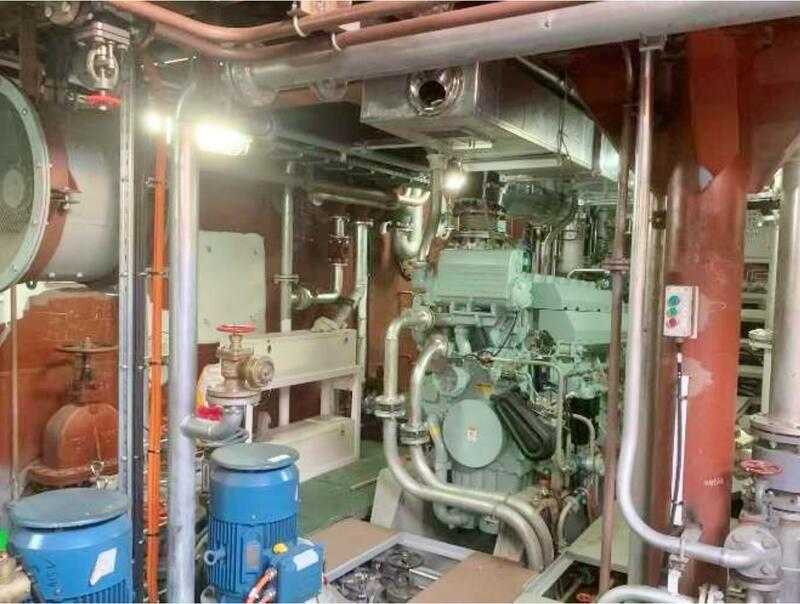

Propulsion & Machinery
Main Engines: 2 × Yanmar 6EY17W, 837 kW @ 1450 rpm
Gearboxes: Yanmar YXH-500L, ratio 4.07:1
Propellers: 2 × 4-bladed FPP
Bow Thruster: 1 × 200 kW, ~3 ton thrust
Steering Gear: Electro-hydraulic, twin rudders

Power Generation
Main Generators: 3 × 110 kW, 415V / 3Ph / 50Hz
Emergency Generator: 1 × 80 kW

Capacities
Fuel Oil: 615 m³ (approx.)
Long Range Fuel Oil: 938 m³ (approx.)
Fresh Water: 229 m³ (approx.)
Ballast Water:
Fresh Water: 320 m³
Sea Water: 398 m³
Deadweight: ~1,838 tons

Safety Equipment

Safety & Environmental Equipment
Oily Water Separator
Sewage Treatment Plant (25 persons)
Ballast Water Management System (50 m³/hr)

Rescue Boat & Davit: 1 × 6-person boat

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
