Description

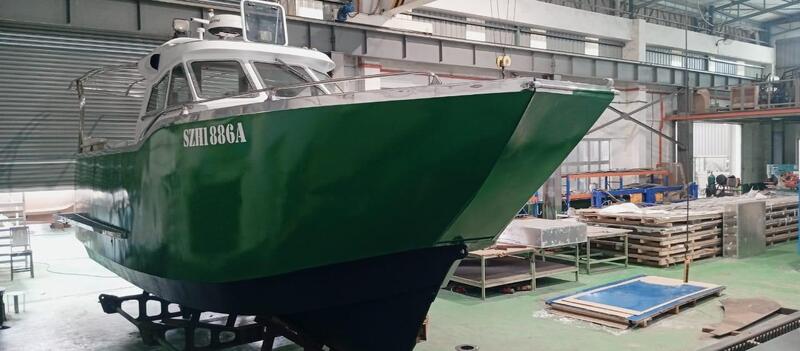

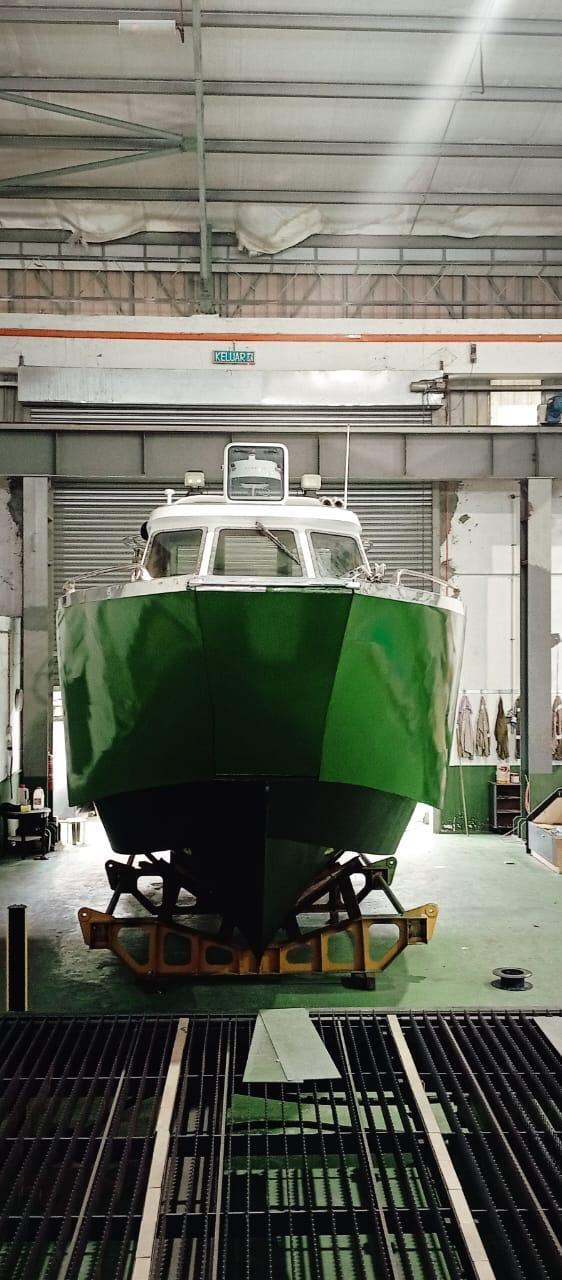

Basic functions:- Unique design aluminium hull vessel, regarded as safest and eco-friendly with full electric and hybrid propulsion for commercial fishing applications with high standard craftmanship. Classification: - Bureau Veritas or equivalent; I HULL Fishing Vessel. Also suitable for Water Taxi or Crew Boat.

Specifications

Accommodation

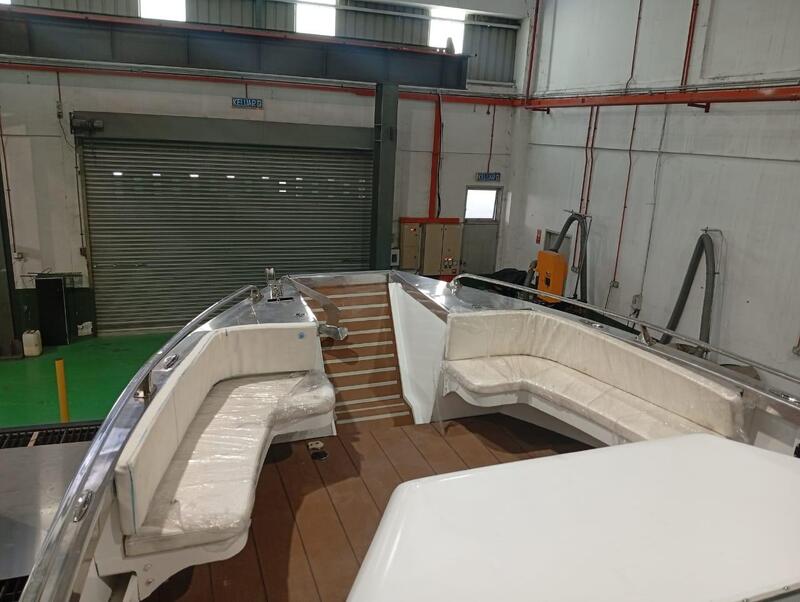

SEATING , SEAT STORAGE & UPHOLSTERY
6 pax at forward
6 pax at aft

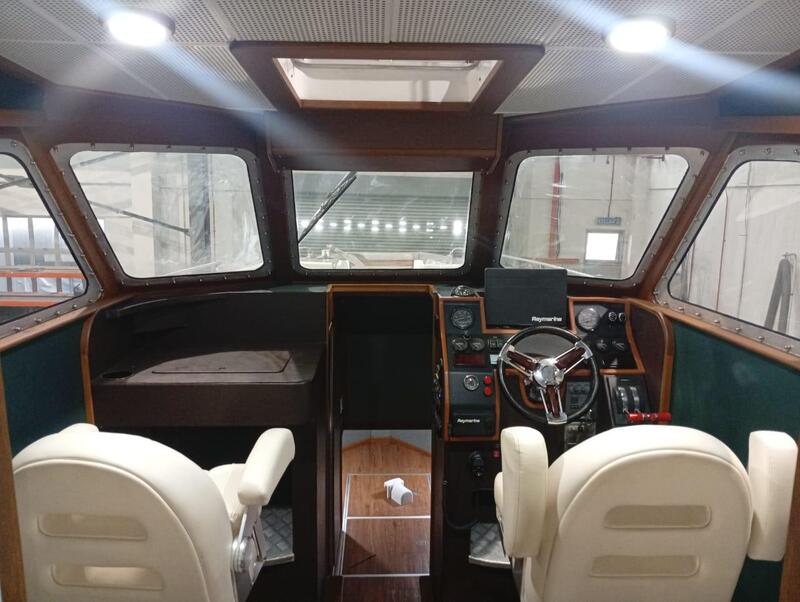

4 pax in cabin
2 pax in sleeper space
Shower and toilet

Construction

GENERAL
Basic functions:- Unique design aluminium hull vessel, regarded as safest and eco-friendly with full electric and hybrid propulsion for commercial fishing applications with high standard craftmanship. Classification: - Bureau Veritas or equivalent; I HULL Fishing Boat. Also suitable for Water Taxi or Crew Boat.

Why Aluminium?
- Lighter & tougher than conventional Fibreglass
- Better fuel economy
- Higher impact resistance
- Easier to repair

This is one of the few commercial fishing boats on the market that come with a Bureau Veritas Classification, a nod to its high standard of craftsmanship.

Other unique features include:
- Center console which allows 360-degree mobility during sports fishing
- Auto/manual front ramp that can be used to access tight/shallow spots for disembarkation
- Retractable rear ladder

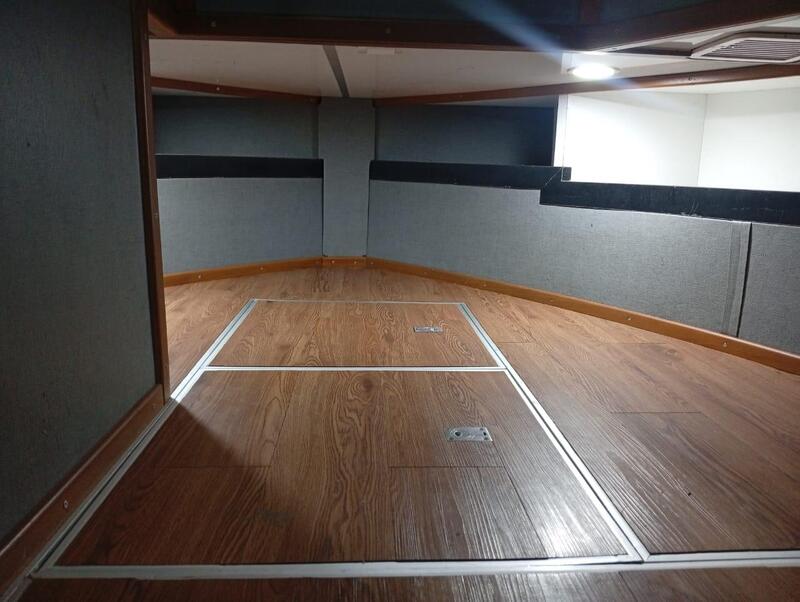

- Sleeper Cabin
- Toilet & Shower

MAIN PARTICULARS
Length Overall: 9.50m
Length BP: 7.50m
Beam Moulded: 3.00m
Depth Moulded :1.20m
Draft: 0.40m
Displacement: 4.8 T

COATINGS & LETTERING OUTFITTING
Non-Skid coating on decks and gunwales
Lettering as per client requirement

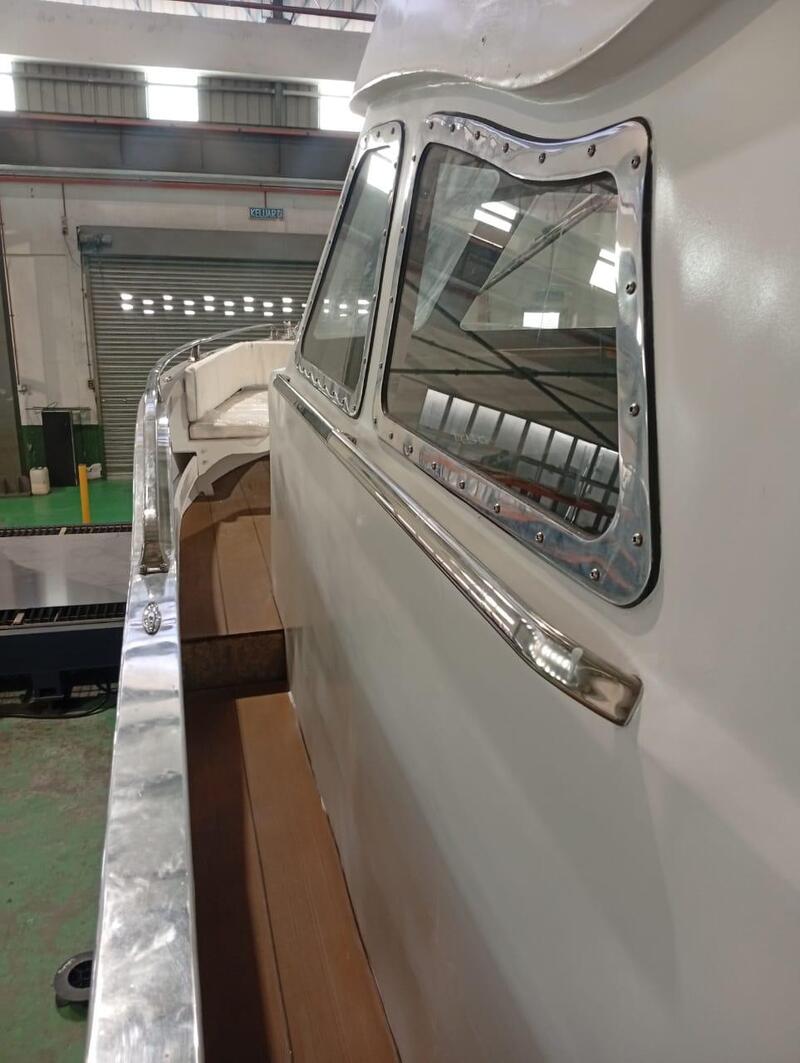

Hatch, chain and handrails are as of marine practice
6 x stainless steel fairleads

HULL CONSTRUCTION
Aluminum marine grade 5083-H116, 6mm gauge hull
Scantlings and plating sized per ABS HSNC rules
Reinforced keel bar- 8mm
Anchor storage locker with top access lid
Transom inspection hatch
Sacrificial hull anode(s)

MAIN DECK
Deck space is 5.4 m2
Fold-able forward Ramp

Navigation Equipment

Engine(s)

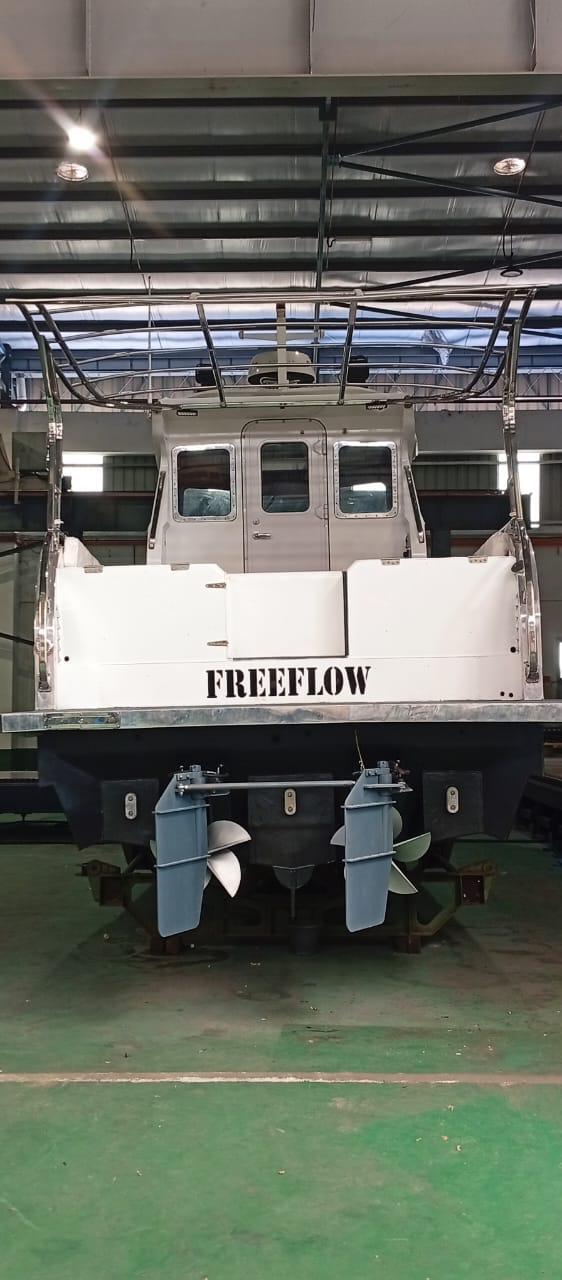

PROPULSION & MACHINARIES

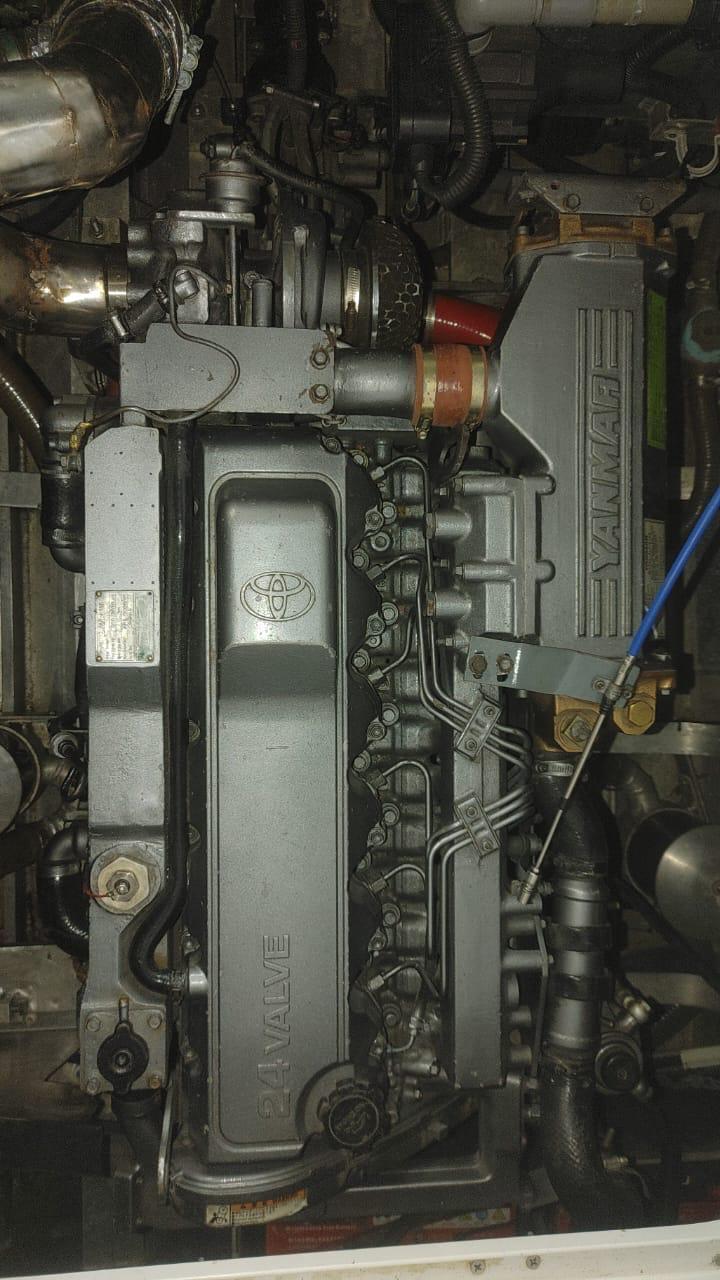

2 x 230 kW Yanmar Marine Diesel engine
Top speed: 40 knots
Cruising speed: 28 knots

FUEL SYSTEM
1200 litres diesel tank
EPA compliant filerl and air-vent with integrated check-valves, and refueling vapors canister

Electrics

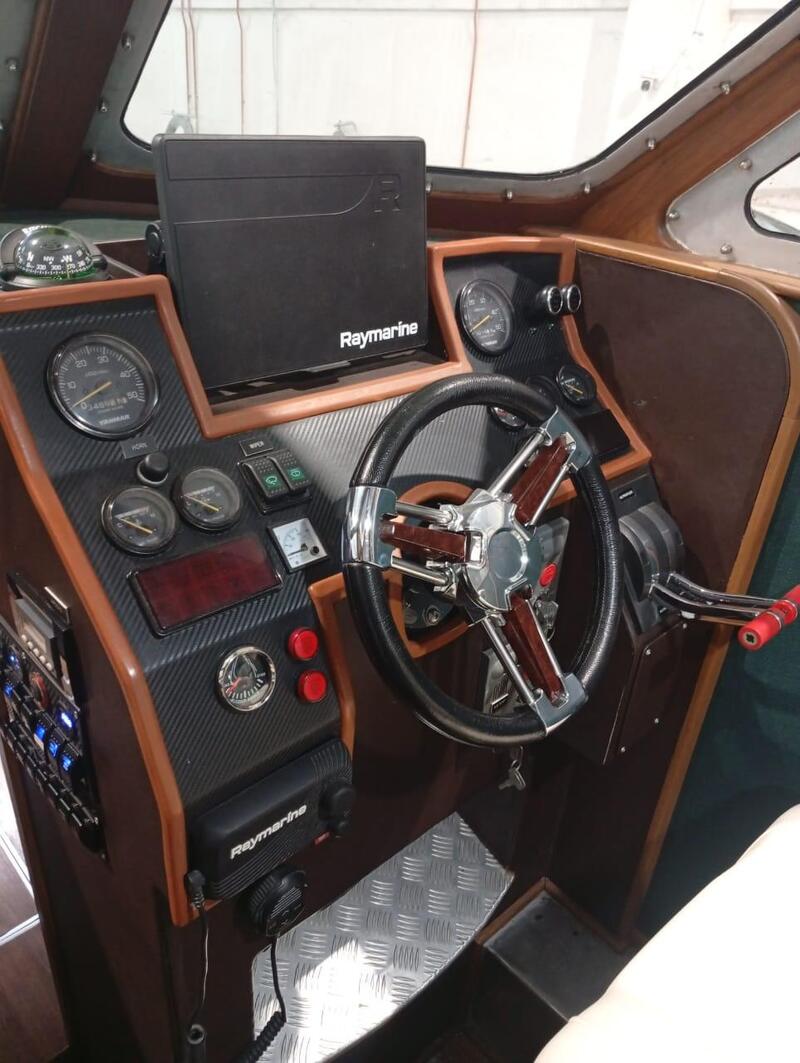

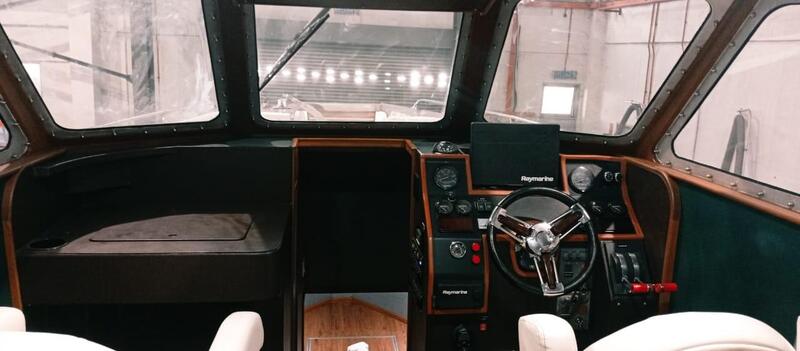

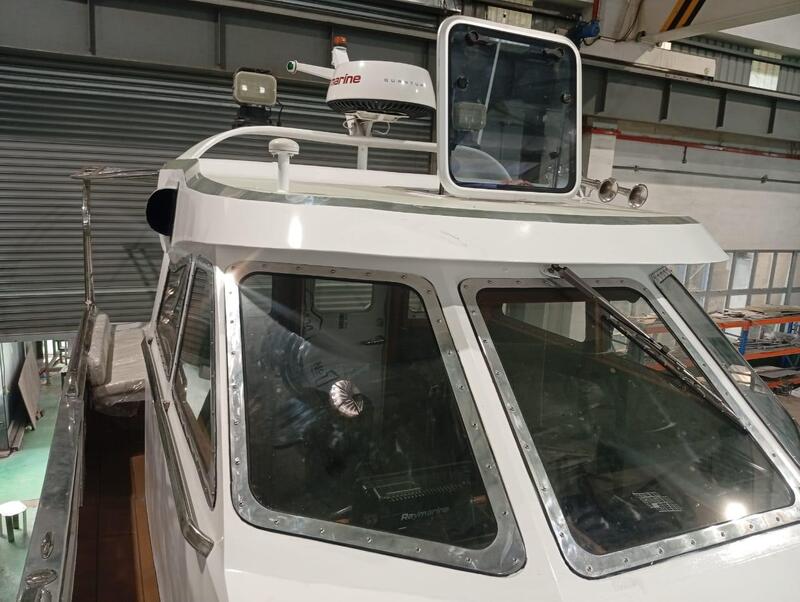

ELECTRICAL & NAVIGATION EQUIPMENT
Marine VHF
Intercom with headset
Magnetic compass
Echo sounder
Automatic Identification system (AIS)
Radar with GPS & chart card
Navigation lights
Search light

Safety Equipment

SAFETY & RESCUE EQUIPMENT
2 x lifebuoy ring
1 x First aid kit
2 x Fire extinguisher
4 x Inflatable life jacket

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
