Description

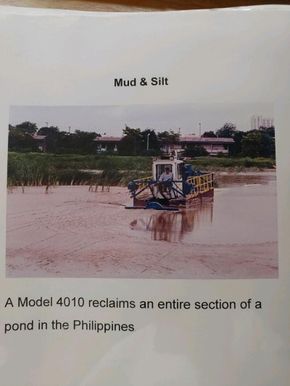

IMS Versi 4010 dredge useful for dredging Rivers, Sand Pits, Mine Tailings Ponds, Canals, Lakes, and Industrial Lagoons. One truck transportable, the patented Starwheel Drive self-propulsion system, Cummins Engine, dredging capacity of 150m3/hr and 10” discharging pipe including discharging hose and floates, hydraulic system, weed harvesting cutter head, heated/air-conditioned operator cab

Principal Dimensions and Characteristics
Length Overall: 10.783 m (including cutter)
Length of hull: 7.42 m
Width with equipment: 2.898 m
Width of Hull: 2.45 m
Depth: 0.86 m
Displacement: 7,227 ton
Light Weight: 5.855 ton
Built in 2002 by Innovative Material Systems from USA (Serial #2007)

Dredging Capacity
Dredging capacity: 150m3/hr
Standard discharging distance: 400m
Diameter of discharging pipe: 10”
Dredging Depth: 6.1 m

Main Engine
Make/Model: Cummins #6BTA, 6 Cylinder, Turbocharged & Aftercooled
Power: 174 HP @ 2,500 rpm
Fuel: Use Only No.2 diesel
Fuel Capacity: 175 gallon

Hydraulic System
Hydraulic pump: Parker PAVC100BR46C3/PAVC65WB2R4A, a variable displacement, axial piston and a fixed displacement pump
Total pump capacity: 100 gpm @ 2,000 psig
Hydraulic Reservoir: 65 equipped with low oil level and high oil temperature alarm contact switches
Filtration: 100% return flow through a 10 micron filter and 5% of flow through a secondary 1 micron filter with water removal capacity
Relief Valve settings:
Circuit #1, Dredge Pump: 2,500 psig
Circuit #2, All other functions: 2,900 psig
Hydraulic Oil: Use Only Shell Rotella T30 or equal

Cutter head
Cutter bar (diameter x length): 559 x 2,438 mm (22 x 96 inch)
Replaceable hardened steel excavator blades available with paddlebar for materials that are not easily slurried.
10inch submersible dredge pump mounted directly behind cutterhead

Propulsion
Starwheel Drive self-propulsion (patented)
Secondary Propulsion: is set up for optional cable rigging in lined ponds

Cab Assembly
Heated/Airconditioned Operator Cab
Controls: Electronic joystick controls are provided

Floatation

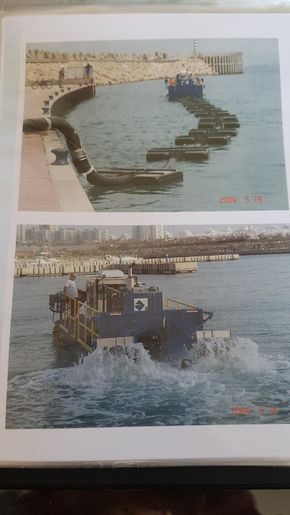

Floatation: flexible discharge hose, discharge line floates
- Flexible discharge hose: diameter 10”, total length about 60 meter
- Floates: floats 9 ea x 6m for flexible discharge hose, floats 17 ea for plastic discharging tube

(The information of the vessel is given in good faith without guarantee. This vessel is offered subject to sale, price change, location or withdrawal without notice.)
