Description

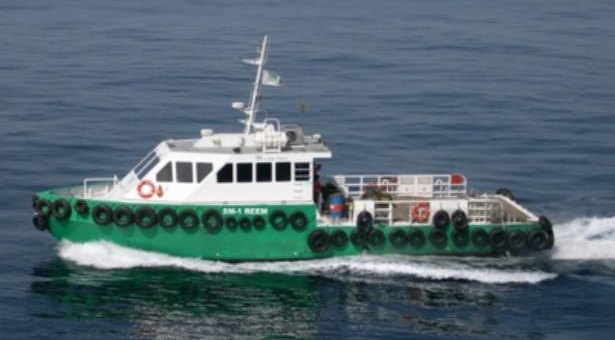

SM-1 REEM is a 21.00 m aluminium commercial vessel with passenger and deck-cargo capability. Built in 2002 by Seaspray Marine Services, the vessel has a breadth of 6.00 m, depth of 2.54 m and maximum draft of 1.60 m. She offers a service speed of 14 knots and economical speed of 12 knots, with a range of approximately 400 nautical miles.

The vessel is powered by 2 × Caterpillar 3412 C main engines, developing 764 bhp each, with 2 × Twin Disc MG 5145A gearboxes. Auxiliary power is provided by 1 × Perkins 4GM and 1 × Caterpillar C4.4. Generator output is 1 × 45 kVA and 1 × 60 kVA at 380 V / 50 Hz.

Capacity includes 18 MT deck cargo, 45 m² deck area and 31 passengers. Fuel capacity is 4,000 litres and fresh-water capacity is 1,000 litres.

Class: TASNEEF. Flag/Port of Registry: Dubai, U.A.E. Asking price: USD 850,000. Charter option possible.

Specifications

Accommodation

Passenger capacity: 31 persons. Crew accommodation: 5 persons.

Construction

Hull: Aluminium. Builder: Seaspray Marine Services. Year built: 2002. Length: 21.00 m. Breadth: 6.00 m. Depth: 2.54 m. Maximum draft: 1.60 m.

Equipment

Deck cargo capacity: 18 MT. Deck area: 45 m². Fuel capacity: 4,000 litres. Fresh-water capacity: 1,000 litres. Range: 400 nautical miles.

Navigation Equipment

Radar: Koden MD 3441; MDC 2041.
GPS: Furuno GP-31.
Echo Sounder: Hondex HE-770.
Compass: Plastimo.
GMDSS: Sailor.
AIS: Jotron.

Engine(s)

Main Engines: 2 × Caterpillar 3412 C, 764 bhp each. Gearboxes: 2 × Twin Disc MG 5145A. Engine hours: Starboard 1,120 hours since last overhaul (June 2025); Port 663 hours since last overhaul (December 2025).

Auxiliary Engines: 1 × Perkins 4GM; 1 × Caterpillar C4.4.

Electrics

Generators: 1 × 45 kVA and 1 × 60 kVA; 380 V / 50 Hz.

Certification

All newbuild ships and boats are built to IACS Classification and flag state rules pertaining to the country of destination.
